【M10K】TERASIC友晶 ALTERA MAX 10 FPGA DEVELOPMENT KIT

  • 產品型號： M10K
  • 產品品牌： TERASIC友晶科技/Intel FPGA
  • 產品規格：
  • 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
  • 咨詢熱線：18062095810

The Altera® MAX® 10 FPGA Development Kit provides a full featured design platform built around a 50 K logic elements (LEs) MAX 10 FPGA, optimized for system level integration with on-die analog-to-digital converter (ADC), dual-configuration flash, and DDR3 memory interface support. The board features on-board USB-BlasterTM II, high-speed mezannine card (HSMC), and Pmod™ Compatible expansion cards, high-definition multimedia interface (HDMI) output, and dual Ethernet for industrial Ethernet applications. The MAX 10 FPGA Development Kit provides the perfect system-level prototyping solution for industrial, automotive, consumer, and many other market applications.

With this development board, you can:

  • Develop designs for the 10M50D, F484 package FPGA
  • Measure the performance of the MAX 10 FPGA analog-to-digital block conversion
  • Interface MAX 10 FPGAs to DDR3 memory at 300 MHz performance
  • Run embedded Linux using the Nios® II processor
  • Interface to daughtercards and peripherals using HSMC and Digilent Pmod™ Compatible connectors
  • Measure FPGA power (VCC_CORE and VCC_IO ) using the power monitor graphical user interface (GUI)
  • Reuse the kit’s PCB board and schematic as a model for your design

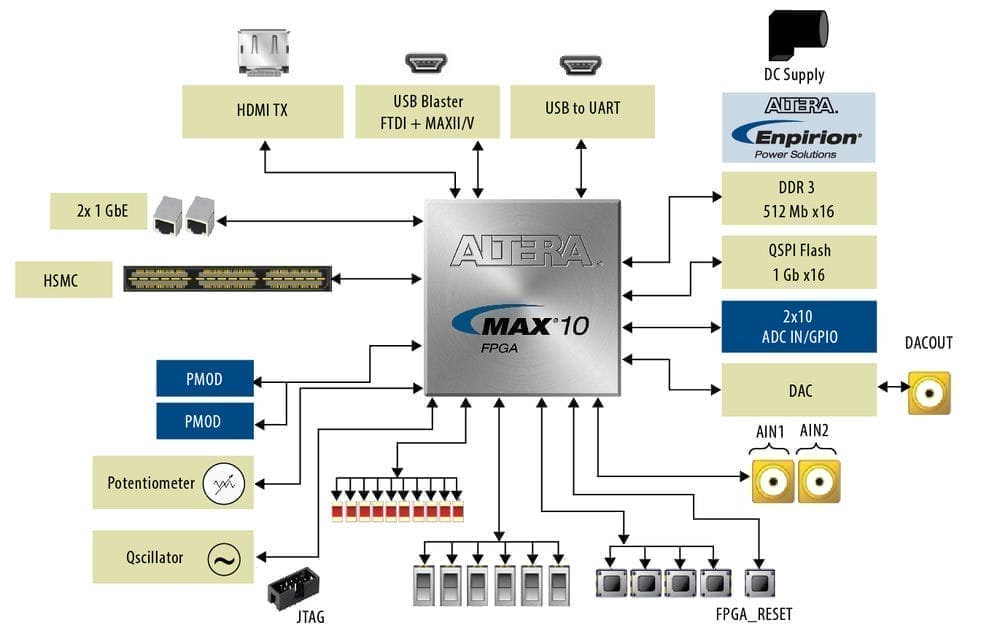

MAX 10 FPGA Development Board Block Diagram



The MAX 10 FPGA Development Kit includes the following:



  • RoHS- and CE-compliant MAX 10 FPGA development board

    • Featured devices

      • MAX 10 FPGA (10M50D, dual supply, F484 package)
      • Enpirion® EN2342QI 4A PowerSoC voltage-mode synchronous step-down converter with integrated inductor
      • Enpirion EN6337QA  3A  high-efficiency PowerSoC DC-DC step-down converters with integrated inductor
      • Enpirion EP5358xUI 600 mA PowerSoC DC-DC step-down converters with integrated inductor
      • MAX II CPLD – EPM1270M256C4N (On-board USB-Blaster II)

    • Programming and Configuration

      • Embedded USB-Blaster II (JTAG)
      • Optional JTAG direct via 10-pin header

    • Memory devices

      • 64Mx16 1 Gb DDR3 SDRAM with soft memory controller
      • 128Mx8 1 Gb DDR3 SDRAM with soft memory controller
      • 512Mb quad serial peripheral interface (quad SPI) flash memory

    • Communication ports

    • Analog

      • Two MAX 10 FPGA ADC SMA inputs
      • 2x10 ADC header
      • Potentiometer input to ADC
      • One external 16 bit digital-to-analog converter (DAC) device with SMA output

    • Clocking

      • 25 MHz single-ended, external oscillator clock source
      • Silicon labs clock generator with programmable frequency GUI

    • Switches, push buttons, jumpers, and status LEDs

  • Mini-USB cable for on-board USB-Blaster II

  • 2A power supply and cord

  • Free Quartus® Prime Lite design software (download software and license from the website)

  • Complete documentation

    • User manual, bill of materials, schematic, and board files


No 產品名稱 售價(RMB)
1. [M10K] ALTERA MAX 10 FPGA DEVELOPMENT KIT
產品編號: T0198  重量: 1,400g
 xxx

Related Links

Documents

標題 版本 檔案大小(KB) 新增日期 下載
User Guide 1.0    2015-12-01

Rev C Schematic 1.0    2015-12-01

Rev C. PCB Complete kit installation　 (Windows PC only)　 1.0    2015-12-01

Rev B Schematic 1.0    2015-12-01

Rev B. PCB Complete kit document installation　 (Windows PC only) 1.0    2015-12-01
