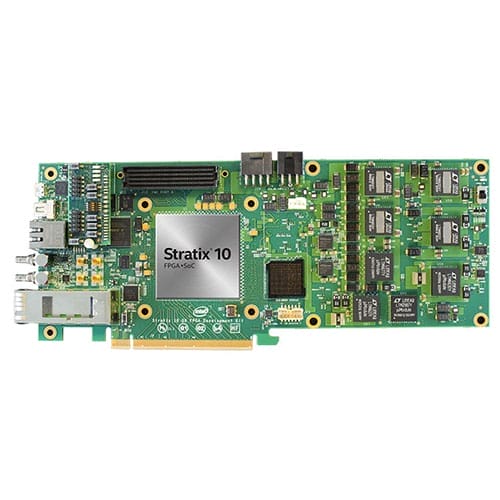

【DK-DEV-1SGX-H-A】Intel Stratix 10 GX FPGA Development Kit
- 產品型號： DK-DEV-1SGX-H-A
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： This development kit features a 1SG280HU2F50E2VG device and a one-year license for the Quartus? Prime Pro design software.
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
Intel’s Stratix® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Stratix 10 GX FPGAs for your design needs.
You can use this development kit to:
Develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board.
Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.
Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by Altera partners and supporting protocols, such as JESD204B, Serial RapidIO®, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI),OBSAI, and many others.
| Hardware |
|---|
|
| Software1 |
|---|
|
Notes:
Download and unzip Stratix 10 GX FPGA Development Kit installer first. Install the Board Test System.
A one-year license for Quartus® Prime Pro design software is available upon purchase of the kit. License activation instructions and FAQs.

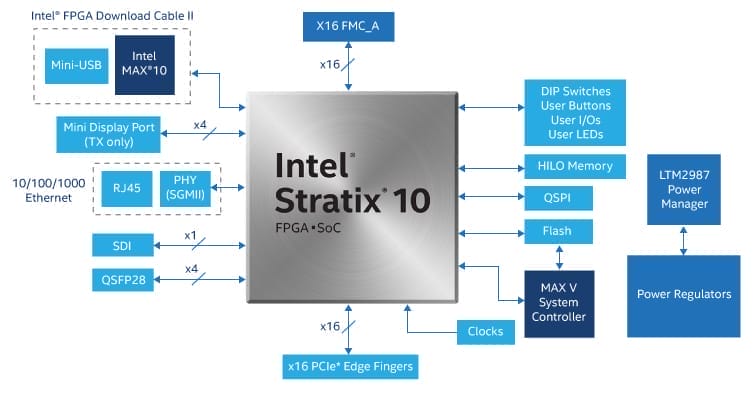

Figure 2. Stratix 10 GX FPGA Development Kit Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. | Stratix 10 GX FPGA Development Kit L-Tile Edition (Production Version)
產品編號: T0603  重量: 9,800g | xxx |
| 2. | Stratix 10 GX FPGA Development Kit H-Tile Edition (Production Version)
產品編號: T0604 重量: 9,800g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Board Schematic |
ES Edition  | 2018-09-27 |  | |
| User Guide |
ES Edition | 2018-09-27 | | |
| Quick Start Guide |
ES Edition | 2018-09-27 | | |
| Stratix 10 FPGA H-Tile Installer Package |
ES (17.1) | 2018-09-27 |  | |
| Stratix 10 FPGA L-Tile Installer Package |
ES (17.1) | 2018-09-27 | | |
| Stratix 10 FPGA L-Tile Installer Package |
Production (18.0 or higher) | 2018-09-27 | | |
| Quick Start Guide (ES Edition) |
1 | 2017-05-11 | |
