【SMK】 Servo Motor Kit
- 產品型號： SMK
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Drive up to 24 servo motors simultaneously
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810

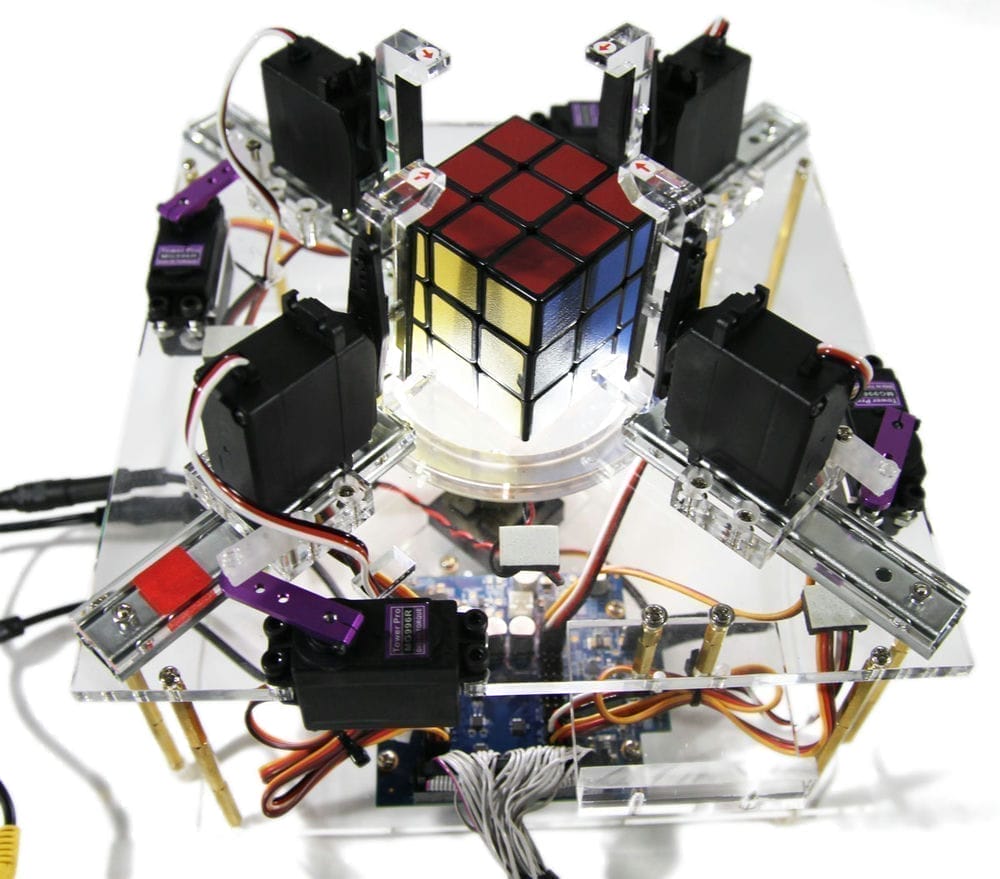

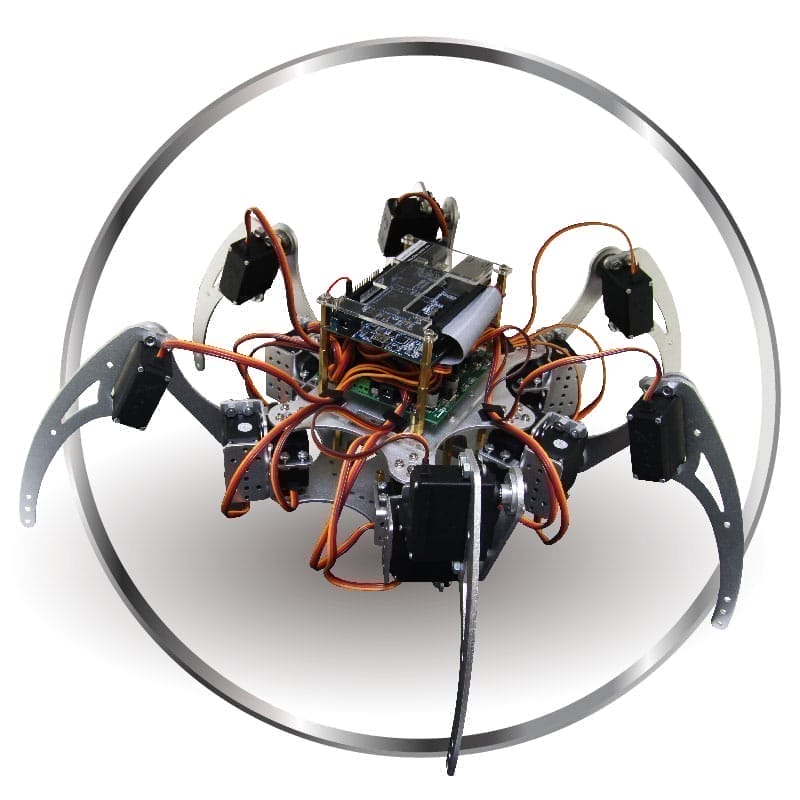

SMK is a Server Motor Kit designed for developers to learn about the servo motor control and build their robot machine. It includes one servo motor driver daughter card and one servo motor (we offer the option for more motors). The motor driver card can drive 24 servo motors at most. It can be used to drive a multiple-joint robot machine, such as Hexapod Robot, Biped Robot, and Arm Robot.
The motor driver daughter card has a 3.3V 2x20 GPIO interface which can connect to the DE series of FPGA boards as a host board, e.g., DE0-Nano and DE0-Nano-SoC. The host board can send PWM signals to the motor driver card to control the rotate angle of servo motors.
The kit includes the PWM IP and application examples showing how to control the servo motor. With the examples, developers can easy develop their robot machines .

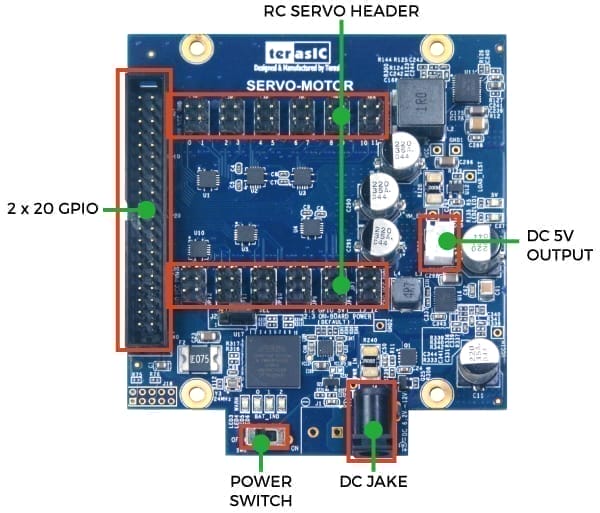

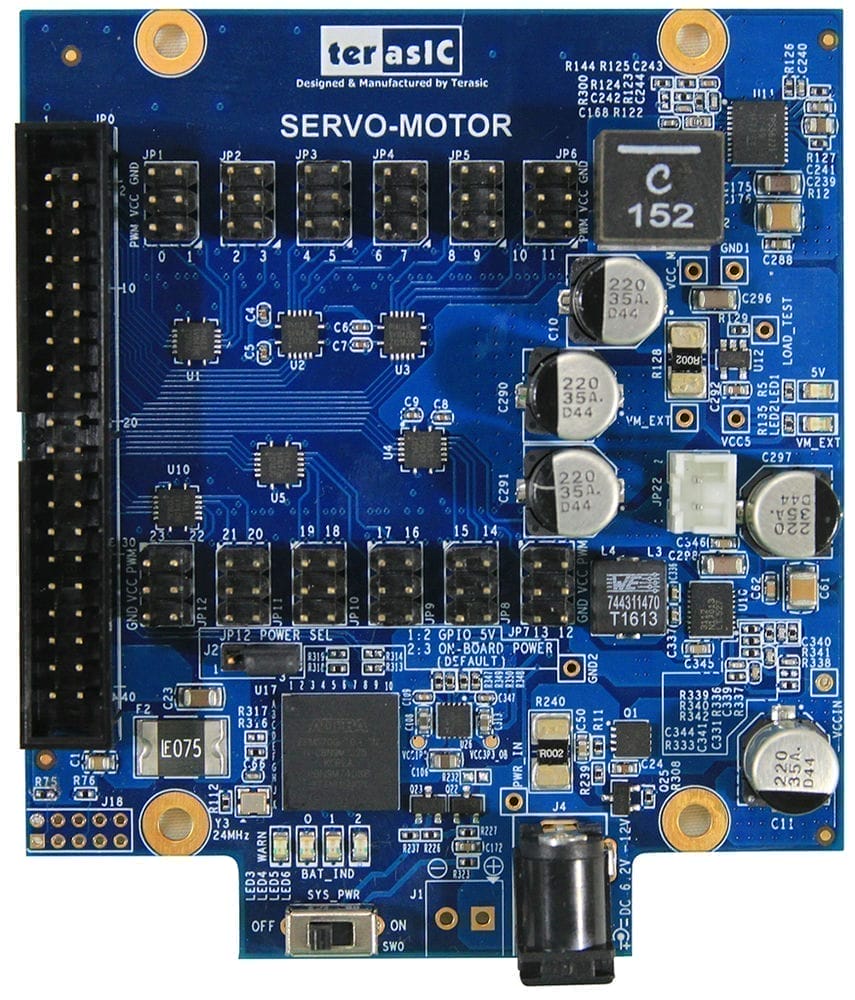

Motor Driver Daughter Card
- Input 6.2~12V DC for driving motors
- Provide 5V DC power output for host board
- 2X20 3.3V GPIO Interface
- Drive 24 servo motors at most
- Fuse protection for each servo driving port
-
Build-In Altera CPLD and Power Monitor Chip:
- Battery voltage monitor
- Total current monitor
- Auto shutdown when battery is low or total current is too high
- Source code is available for users to modify according to their application

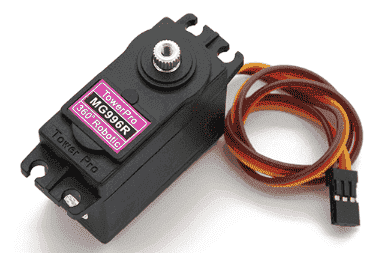

Servo Motor MG966R
- Rotation Angle: 0~120
- Weight: 55g
- Dimension: 40.7×19.7×42.9mm
- Stall torque: 9.4kg/cm (4.8v); 11kg/cm (6.0v)
- Operating speed: 0.19sec/60degree (4.8v); 0.15sec/60degree (6.0v)
- Operating voltage: 4.8~ 6.6v
- Gear Type: Metal gear
Connectivity

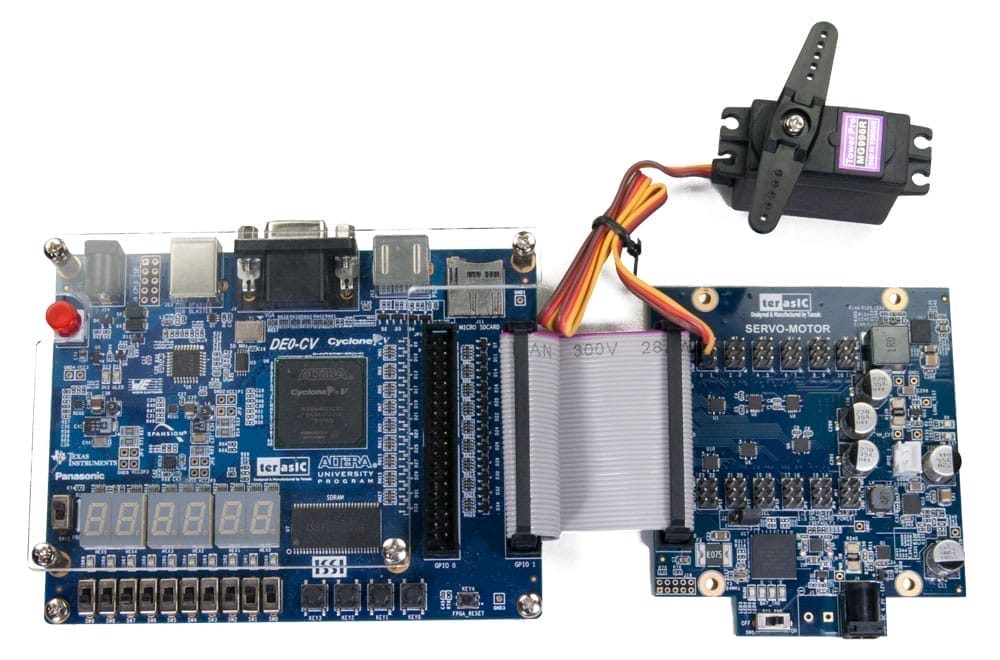

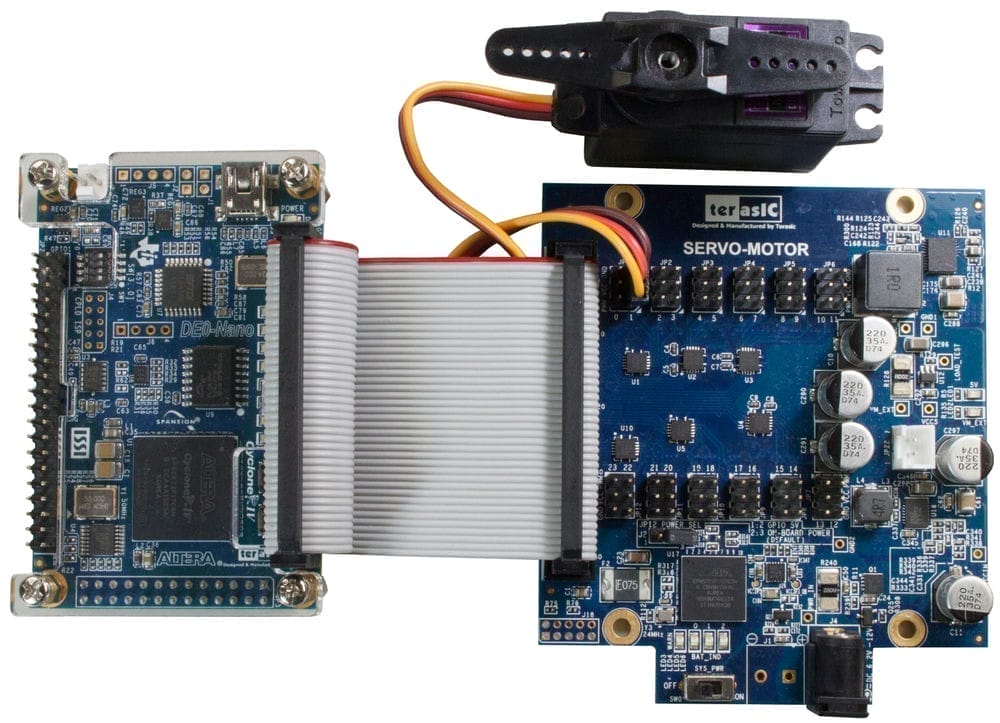

The Servo Motor Card can connect to DE serial FPGA boards as shown below.

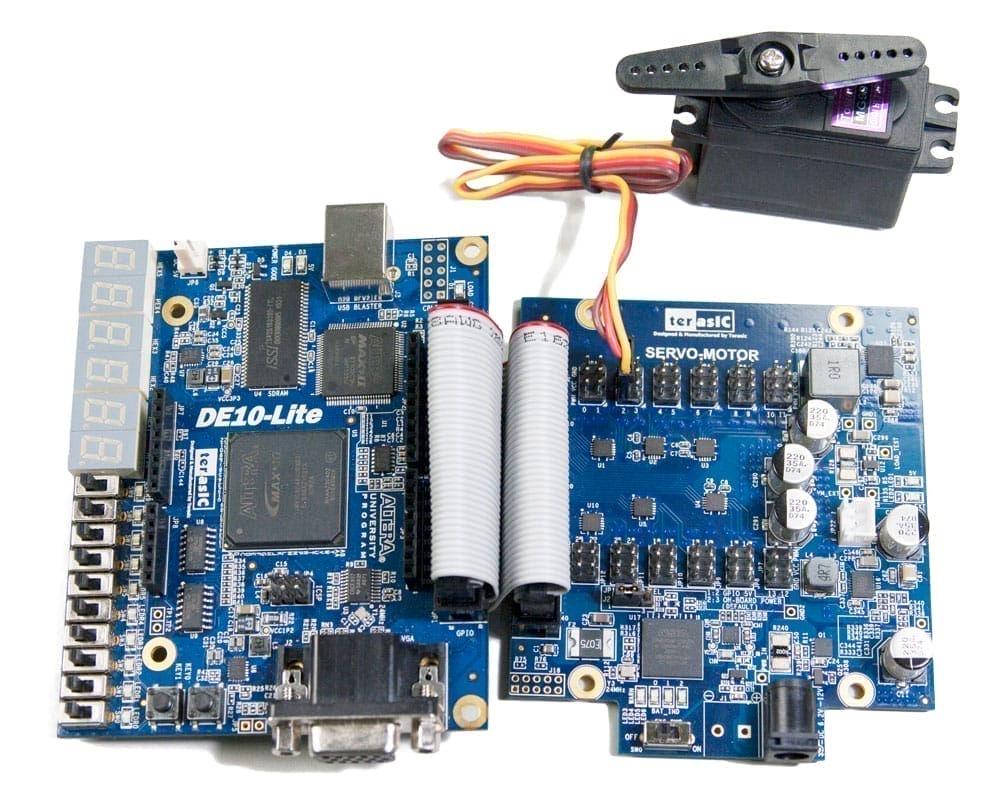

- Connect to DE10-Lite
- Connect to DE0-CV
- Connect to DE0-NANO

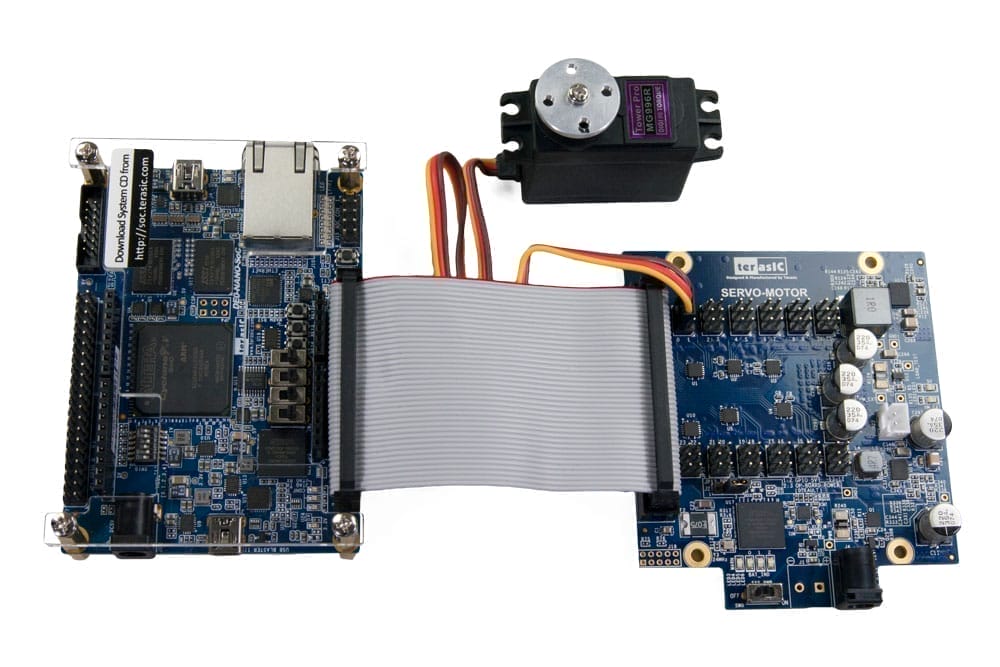

- Connect to DE0-NANO-SoC
- size:79.12*91.35 mm
主產品訂購
| No | 產品名稱 | Feature | 售價(RMB) |
|---|---|---|---|
| 1. |
[SMK] Servo Motor Kit
產品編號: P0288
 重量: 300g |
xxx |
選購配件 (如需選購, 請與主產品同時訂購)
| No | 配件名稱 | 售價(RMB) |
|---|---|---|
| 1. |
MG996R Servo
產品編號: FXX-3037-TOP
重量: 300g |
xxx |
| 2. |
SMK Power, DC 12V 7.5A 90Wmax, AC CORD USA 3 pin
產品編號: B0492
重量: 800g |
xxx |
| 3. |
SMK Power, DC 12V 3.5A 42Wmax, AC CORD USA 2 poles
產品編號: B0493
重量: 400g |
xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Servo Motor Kit User Manual | 2395 | 2016-09-12 |
 |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Servo Motor Kit CD-ROM | 1.0.2 | 2016-09-12 |
