【MTLC】Capacitive Multi-Touch LCD with Camera Module
- 產品型號： MTLC
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Capacitive Multi-Touch LCD and Camera Module
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
?The Terasic Capacitive Multi-Touch LCD with Camera Module (MTLC) is not only equipped with a 7” LCD screen, it also comes with a 5-Megapixel digital image sensor module, G-sensor and light sensor. All of these sensors connect to the FPGA device via the HSMC connector and they can be controlled and used directly by the FPGA device.
The kit comes with everything you need to develop multimedia applications using a digital multi-touch panel. Complete reference designs and source codes for implementing a photo viewer demonstration and a color painter is included in the kit.
*Power Solution for Altera FPGAs
Capacitive Multi-Touch LCD and Camera Module
- 7-inch TFT LCD with pixel resolution of 800*480
- 16 million colors (8-bit RGB)
- LED backlight
5-Megapixel Digital Image Sensor
- 2,592H x 1,944V active pixels with Bayer color arrangement
- Programmable frame rate up to 70FPS (VGA)
- Snapshot-mode mode to take frames on demand
- Simple two-wire serial control interface
Digital Accelerometer
- Up to 13-bit resolution at +/- 16g
- SPI (3- and 4-wire) digital interface
- Flexible interrupts modes
Ambient Light Sensor
- Precise illumination measurement under diverse lighting conditions
- Programmable interrupts
- 16-bit digital output with I2C fast-mode at 400 kHz
- Programmable analog gain and Integration time
- 50/60Hz lighting ripple rejection

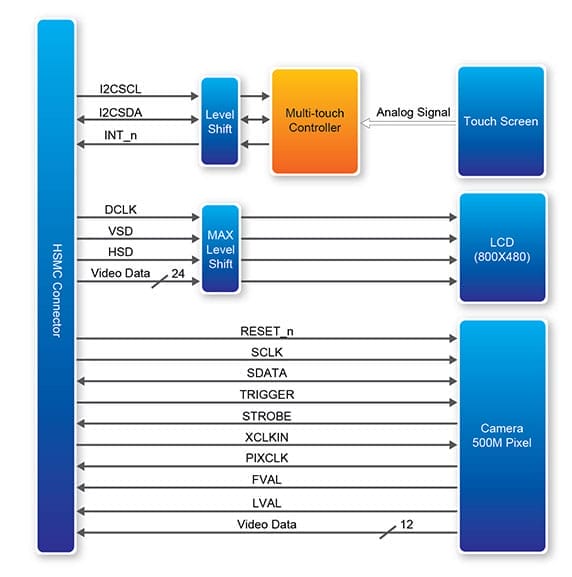

MTLC Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[MTLC] The Terasic Capacitive Multi-Touch LCD with Camera Module
產品編號: P0158
 重量: 900g |
xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| MTLC User Manual | 3182 | 2014-05-22 |
 |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| MTLC System CD | 1.0.0 | 2014-05-22 |
