【COMM-HSMC】TERASIC友晶COMM-HSMC

  • 產品型號: COMM-HSMC
  • 產品品牌: TERASIC友晶科技/Intel FPGA
  • 產品規(guī)格: RS-485 x2 ;CAN x2
  • 產品價格: 歡迎咨詢采購,量多優(yōu)惠多,提供完善的售后保障和支持!
  • 咨詢熱線:18062095810

The HSMC Communication card adds key interfaces to support a wide range of industrial, image processing, scientific and measurement requirements. From 10/100/1000 Ethernet PHY, to CAN, RS232, RS485, the HSMC Communication card can quickly get you started with your designs. Also included is a digital DVI transmitter port to display FPGA driven video content. The card allows users to evaluate included interfaces with any HSMC interface host boards.

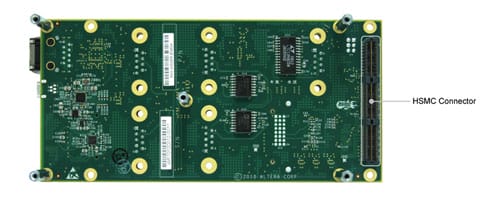

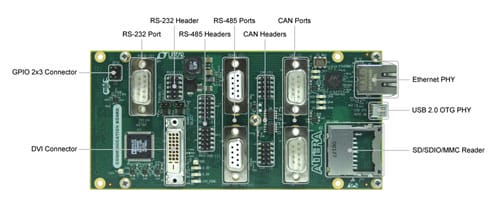

HSMC Communication Card:

Features

  • RGMII Ethernet PHY, RJ-45 connector
  • USB 2.0 OTG PHY with ULPI
  • RS-485 x2 with 2x5 0.1* header
  • CAN x2 with DB9 connector
  • GPIO with 2x3 0.1* connector

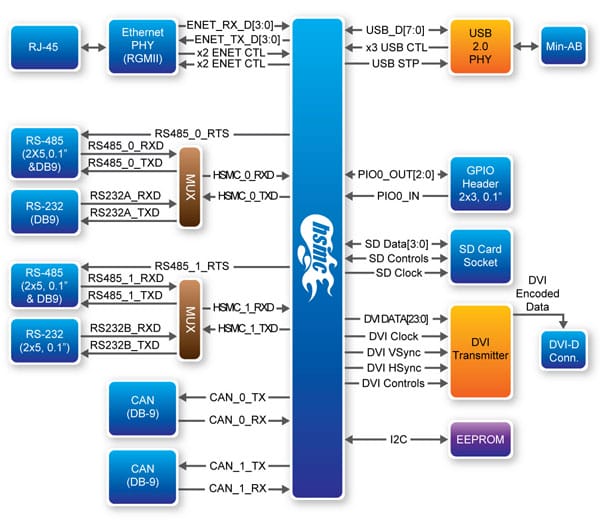

Block Diagram

   Connect DE3



  Connect DE4



   Connect DE2-115




   Connect A2GX









No 產品名稱 售價(RMB)
1. [COMM-HSMC]HSMC COMMUNICATION BOARD
產品編號: P0078  重量: 500g
xxx

Documents

標題 版本 檔案大小(KB) 新增日期 下載
COMM_HSMC_User_Manual   1984 2013-11-01

CD-ROM

標題 版本 檔案大小(KB) 新增日期 下載
COMM System CD 1.0.1   2013-11-11
