【VEEK-MT2-C5SoC Upgrade Kit】TERASIC友晶VEEK-MT2-C5SoC升級套件
- 產品型號： VEEK-MT2-C5SoC Upgrade Kit
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： 7-inch TFT LCD，8-Megapixel Digital Image Sensor
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The Video and Embedded Evaluation Kit - Multi-Touch for C5SoC Upgrade Kit, Second Edition( VEEK-MT2-C5SoC Upgrade Kit ) offers customers who already own an Intel C5SoC board a brand new integrated platform to develop various embedded applications. We provide simple and straightforward installation guidelines for users to assemble their already owned C5SoC with this upgrade kit.
With upgrade kit installed, this bundle also known as VEEK-MT2-C5SoC features an Intel C5SoC development board targeting the Cyclone V SoC FPGA, as well as a capacitive 7” TFT LCD with 800x480 resolution which natively supports 5 point touch and multi-touch gestures. A 8-megapixel digital image sensor with auto focus, ambient light sensor, Gyroscope, Magnetometer, and 3-axis accelerometer makes up the rich feature-set.
The VEEK-MT2-C5SoC upgrade kit for C5SoC interfaces C5SoC board through HSMC interface. The kit provides customized HSMC cable and acrylics for C5SoC FPGA mainboard and MTLC2 LCD module to be assembled in a cubic form. The kit also provides useful reference designs for software developers to build comple embedded systems.
Interface
LCD Display
8-Megapixel Digital Image Sensor
Ambient Light Sensor
MPU9250 Nine-Axis Sensors
Accelerometer Features
Gyroscope Features
Magnetometer

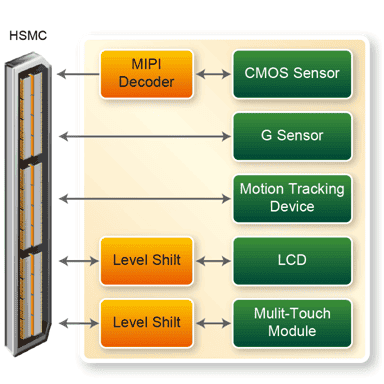

MTLC2 Block Diagram
3-axis silicon monolithic Hall-effect magnetic sensor with magnetic concentrator
Wide dynamic measurement range and high resolution with lower current consumption.
Output data resolution of 14 bit (0.6μT/LSB) or 16 bit (15μT/LSB)
Full scale measurement range is ±4800μT
Magnetometer normal operating current: 280μA at 8Hz repetition rate
Self-test function with internal magnetic source to confirm magnetic sensor operation on end products
Digital-output X-, Y-, and Z-Axis angular rate sensors
User-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
Self-test
Digital-output triple-axis accelerometer
Programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit
Self-test
Precise illumination measurement under diverse lighting conditions
Programmable interrupts
16-bit digital output with I2C fast-mode at 400 kHz
Programmable analog gain and Integration time
50/60Hz lighting ripple rejection
3,264H x 2,448V active pixels with Bayer color arrangement
Programmable frame rate up to 60FPS (1408x792)
Sensitivity 940V/Lux-sec
Voice Coil Motor for focus control
7-inch TFT LCD with pixel resolution of 800*480
16 million colors (8-bit RGB)
LED backlight
Type: HSMC
Control IO-Standard Voltge: 2.5V
Power Source: 3.3V and 12V from HSMC
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. | [VEEK-MT2-C5SoC Upgrade Kit]VEEK-MT2-C5SoC Upgrade Kit
產品編號: P0494  重量: 1,200g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| VEEK-MT2-C5SoC Upgrade Kit Assembly Guide | 1570 | 2016-10-24 |  | |
| VEEK-MT2-C5SoC Upgrade Kit Quick Start Guide | 3861 | 2016-10-24 | |
