【DK-SI-5SGTMC7N/S5GT】Altera Transceiver Signal Integrity開發板

  • 產品型號： DK-SI-5SGTMC7N/S5GT（Part No:T0119）
  • 產品品牌： TERASIC友晶科技/Intel FPGA
  • 產品規格： Stratix V GT FPGA: 5SGTMC7K3F40C2N
  • 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
  • 咨詢熱線：18062095810

The Altera® Stratix® V GT Transceiver Signal Integrity (SI) Development Kit provides a platform for electrical compliance testing and interoperability analysis. The accessibility to multiple channels allows for real-world analysis as implemented in the system with transceiver channels available through SMA and popular backplane connectors. You can use this development kit to perform the following tasks:

  • Evaluate transceiver link performance up to 28 Gbps

  • Generate and check pseudo-random binary sequence (PRBS) patterns via a simple to use GUI (does not require the Quartus® II software)

  • Access advanced equalization to fine tune link settings for optimal bit error ratio (BER)

  • Perform jitter analysis

  • Verify physical media attachment (PMA) interoperability with Stratix V GT FPGAs for targeted protocols, such as CEI-25/28G, CEI-11G, PCI Express® (PCIe®) Gen 3.0, 10GBASE-KR, 10 Gigabit Ethernet, XAUI, CEI-6G, Serial RapidIO® , HD-SDI, and others

  • Use the built-in high speed backplane connectors to evaluate custom backplane performance and evaluate link BER

Featured device

  • 5SGTMC7K3F40C2N

Configuration status and set-up elements

  • JTAG

  • On-board USB-BlasterTM

  • Fast passive parallel (FPP) configuration via MAX® II device and flash memory

  • Two configuration file storage

  • Temperature measurement circuitry (die and ambient temperature)

Clocks

  • 50 MHz, 125 MHz, programmable oscillators (preset values: 624 MHz, 644.5 MHz, 706.25 MHz, and 875 MHz)

  • SMA connectors for supplying an external differential clock to transceiver reference clock

  • SMA connectors for supplying an external differential clock to the FPGA fabric

  • SMA connectors to output a differential clock from the FPGA's phase-locked loop (PLL) output pin

General user input/output

  • 10-/100-/1000-Mbps Ethernet PHY (RGMII) with RJ-45 (copper) connector

  • 16x2 character LCD

  • One 8-postion dipswitch

  • Eight user LEDs

  • Four user pushbuttons

Memory devices

  • 128-megabyte (MB) sync flash memory (primarily to store FPGA configurations)

High speed serial interfaces

  • Four full-duplex GTB (28.05 Gbps) transceiver channels routed to MMPX connectors

  • Seven full-duplex GXB (12.5 Gbps) transceiver channels routed to SMA connectors

    • Short trace routed on a micro-strip

    • Six strip-line channels from the with all the trace lengths are matched across channels

  • 21 full-duplex GXB transceiver channels routed to backplane connector

    • Seven channels to Molex® Impact® connector

    • Seven channels to Amphenol® XCede®

    • Seven channels to footprint of Tyco Strada® Whisper® (connector is not populated)

Power

  • Laptop DC input

  • Voltage margining

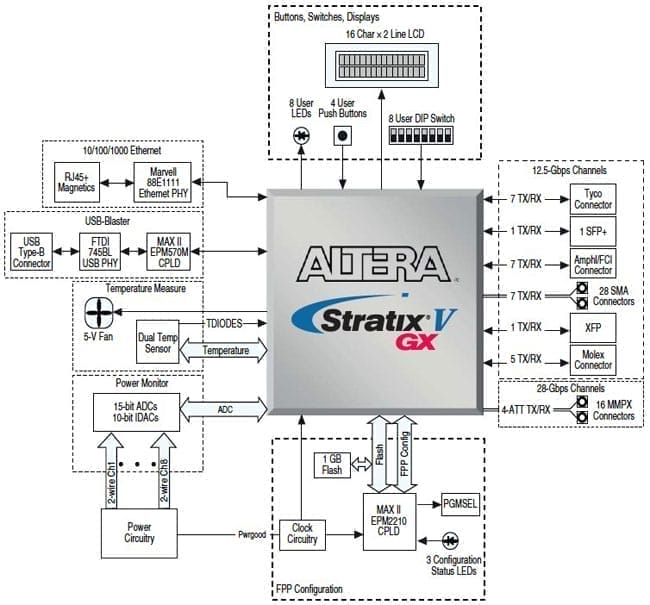

Stratix V GX Transceiver Signal Integrity Development Board Block Diagram

No 產品名稱 售價(RMB)
1. [S5GT] Altera Transceiver Signal Integrity Development Kit, Stratix V GT Edition
產品編號: T0119  重量: 4,500g
xxx


Documents

標題 版本 檔案大小(KB) 新增日期 下載
Transceiver Signal Integrity Development Kit, Stratix V GT Edition User Guide (PDF)     2013-01-03
Transceiver Signal Integrity Development Kit, Stratix V GT Edition Reference Manual     2013-01-03

CD-ROM

標題 版本 檔案大小(KB) 新增日期 下載
Kit installation (for boards with ES silicon) 11.1.2   2013-01-03
Kit installation 12.0   2013-01-03
