【DK-100G-5SGXEA7N】Intel 100G開發板, Stratix V GX版本
- 產品型號： DK-100G-5SGXEA7N/S5GX-100G（Part No:T0099）
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： 5SGXEA7N2F45C2N
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
Altera's 100G Development Kit, Stratix® V GX Edition enables a thorough evaluation of 100G designs by allowing you to:
Support 10G/40G and 100G line interfaces through optical modules
Support applications requiring external memory interfaces, through 6x32-bit DDR3 and 1x36- and 1x18-bit QDRII BL2 memory banks
Use system-side interfaces via two pairs of FCI AirMax connectors
Complete line-side (optical modules) to system-side (AirMax connector) datapath analysis
Evaluate transceiver performance up to 12.5 Gbps
Verify physical medium attachment (PMA) compliance to 10G/40G/100G Ethernet, Interlaken, CEI-6G/11G, and other major standards
Validate interoperability between optical modules, such as SFP, SFP+, QSFP, and CFP

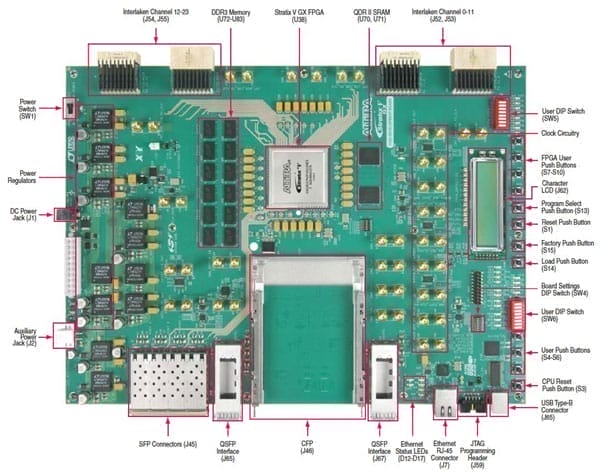

Stratix V GX development board
FPGA configuration
Memory
General user input/output
Components and interfaces
Temperature measurement circuitry
Power

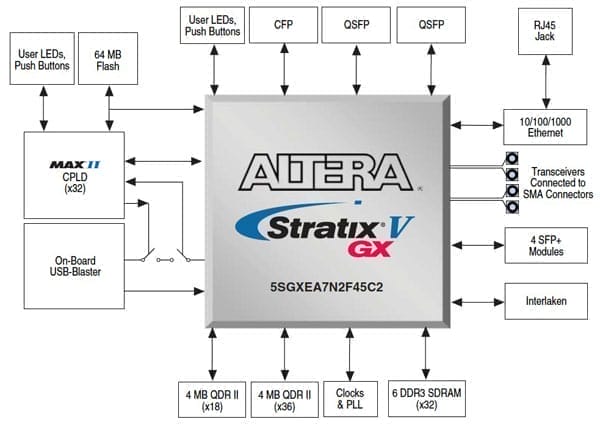

Altera 100G Development Kit, Stratix V GX Edition Block Diagram
19-V DC input
2.5-mm barrel jack for DC power input
On/off power slide switch
On-board power measurement circuitry
Die temperature
Two channels for SMA interface
Four channels for SFP+ interface
Eight channels for QSFP interface
10 channels for CFP interface
24 channels for Interlaken interface
10/100/1000 Ethernet PHY and RJ-45 jack
48 transceiver channels
Four user push buttons
Two DIP switches
Eight user LEDs
Two-line character LCD
Ten configuration status LEDs
Twelve 2-Gb DDR3 SDRAM
Two 72-Mb QDR II SRAM
Fast Passive Parallel (FPP) configuration
1-Gb flash storage for two configuration images (factory and user)
On-board USB-Blaster™ II cable for use with the Quartus® II Programmer, Nios® II software and System Console
JTAG header for external USB-Blaster cable
Featured device: 5SGXEA7N2F45C2N
EPM2210F324C3N, MAX® II 324-pin CPLD
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[S5GX-100G] Altera 100G Development Kit, Stratix V GX Edition
產品編號: T0099  重量: 4,500g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| User Guide (PDF) | 11.1 | 2013-01-04 |  | |
| Reference Manual (PDF) | 2013-01-04 | |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Kit Installation | 12.0 | 2013-01-04 |  |
