【DK-SI-1SGX-L-A】Intel Stratix 10 GX信號完整性開發套件
- 產品型號： DK-SI-1SGX-L-A/S10GSI
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： This development kit features a 1SG280LU2F50E2VG device and a one-year license for the Quartus? Prime Pro design software.
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
Intel's Stratix® 10 GX Signal Integrity Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Stratix 10 GX FPGAs for your design needs.
You can use this development kit to:
Evaluate transceiver channel performance
Generate and verify pseudo-random binary sequence (PRBS) patterns via an easy-to-use GUI
Dynamically change the channel's differential output voltage (VoD), pre-emphasis, and equalization settings to optimize the performance for your channel

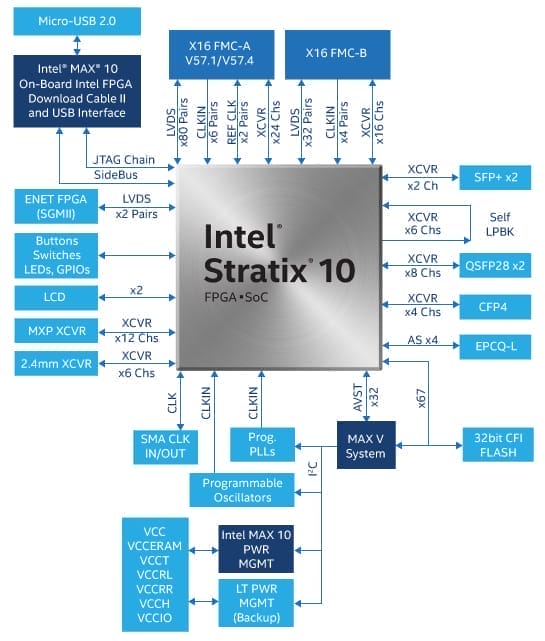

Figure 2. Stratix 10 GX Signal Integrity Development Kit Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. | Stratix 10 Transceiver Signal Integrity Development Kit H-Tile Edition (Production Version)
產品編號: T0508  重量: 10,100g | xxx |
| 2. | Stratix 10 Transceiver Signal Integrity Development Kit L-Tile Edition (Production Version)
產品編號: T0583 重量: 10,100g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Stratix 10 GX SI L-Tile Package |
ES (17.1)  | 2018-09-27 |  | |
| Stratix 10 GX SI L-Tile Package |
Production (18.0 or higher) | 2018-09-27 | | |
| Stratix 10 GX SI H-Tile Package |
ES (17.1) | 2018-09-27 | | |
| Quick Start Guide (ES Edition) |
ES Edition | 2018-09-27 |  | |
| User Guide (ES Edition) |
ES Edition | 2018-09-27 | | |
| Board Schematic (ES Edition) |
ES Edition | 2018-09-27 | | |
| Quick Start Guide (ES Edition) |
ES Edition | 2017-05-11 | |
