【DE10-Lite】TERASIC友晶 DE10-Lite Board

  • 產品型號： DE10-Lite
  • 產品品牌： TERASIC友晶科技/Intel FPGA
  • 產品規格： MAX 10 10M50DAF484C7G Device
  • 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
  • 咨詢熱線：18062095810

Terasic DE10-Lite is a cost-effective Altera MAX 10 based FPGA board. The board utilizes the maximum capacity MAX 10 FPGA, which has around 50K logic elements(LEs) and on-die analog-to-digital converter (ADC). It features on-board USB-Blaster, SDRAM, accelerometer, VGA output, 2x20 GPIO expansion connector, and an Arduino UNO R3 expansion connector in a compact size. The kit provides the perfect system-level prototyping solution for industrial, automotive, consumer, and many other market applications.

The DE10-Lite kit also contains lots of reference designs and software utilities for users to easily develop their applications based on these design resources.

This board has many features that allow users to implement a wide range of designed circuits, from simple circuits to various multimedia projects. The following hardware is provided on the board:

FPGA Device

  • MAX 10 10M50DAF484C7G Device
  • Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
  • 50K programmable logic elements
  • 1,638 Kbit M9K Memory
  • 144 18 × 18 Multiplier
  • 4 PLLs

Programming and Configuration

  • On-Board USB Blaster (Normal type B USB connector)

Memory Device

  • 64MB SDRAM, x16 bits data bus

Sensor

  • Accelerometer

Expansion Connectors

  • One 2x20 GPIO Connector(voltage levels: 3.3V)
  • Arduino Uno R3 Connector, including six ADC channels.

Display

  • 4-bit Resistor VGA

Switches/Buttons/LEDs/7-Segment Display

  • 10 LEDs
  • 10 Slide Switches
  • 2 Push Buttons
  • Six 7-Segments Display

Power

  • 5V DC input

Block Diagram of the DE10-Lite Board

Connectivity

  • Connect with MTL2




  • Connect with D5M

  • Connect with Arduino Shield

  • Connect with LT24







  • Size：97.5*80.0 mm


  • Size：97.5*80.0 mm
  •

No 產品名稱 售價(RMB)
1. [DE10-Lite] DE10-Lite Board
產品編號: P0466  重量: 200g
 xxx
2. [DE10-Lite] DE10-Lite Board (教育版)
產品編號: P0466  重量: 200g
 xxx

Documents

標題 版本 檔案大小(KB) 新增日期 下載
DE10-Lite User Manual 1.4 6103 2017-01-24

Daughter Card Demonstrations

標題 版本 檔案大小(KB) 新增日期 下載
D8M-GPIO     2017-05-18

LT24     2016-09-19

MTL2     2016-09-19


CD-ROM

標題 版本 檔案大小(KB) 新增日期 下載
DE10-Lite CD-ROM 2.0.1   2017-08-14

ControlPanel 1.0.2   2017-01-24

Quartus Download 15.1.2   2016-06-21


3D-Printer-Case

標題 版本 檔案大小(KB) 新增日期 下載
Top cover   106 2016-08-18
Bottom cover   33 2016-08-18

友晶科技所發表之范例程式碼，基於免費分享之原則，不提供任何形式的講解或修改。如需進一步范例程式碼講解或修改的協助，我們將轉至 "設計服務部門" 評估。
本授權條款允許使用者於使用所有友晶及 Altera 開發板時，得以重制、散布、傳輸以及修改友晶科技提供的源碼，但不得為商業目的之使用。使用時必須於引用處表彰友晶科技 (Terasic Inc.) 之商號。



Example Designs in System CD

  • Factory Default Code
  • SDRAM Test in Nios II
  • SDRAM Test in Verilog
  • VGA Pattern
  • Accelerometer Level
  • Accelerometer Rock

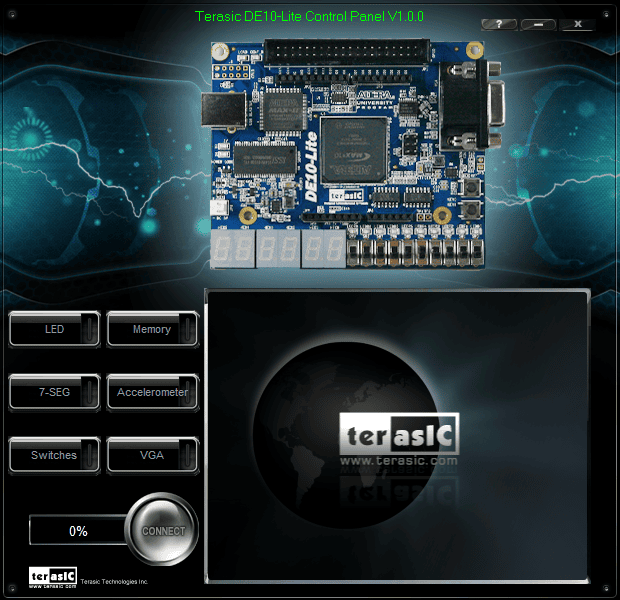

DE10-Lite Control Panel

Allows users to access various components on the DE10-Lite board from a host computer.

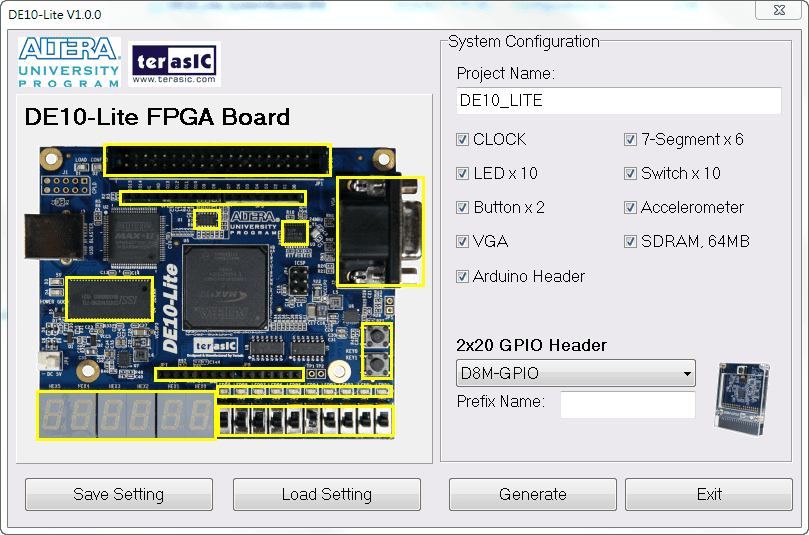

DE10-Lite System Builder

This tool will allow users to create a Quartus II project on their custom design for the DE10-Lite board with the top-level design file, pin assignments, and I/O standard settings automatically generated.
