【T-Core】TERASIC友晶 T-Core
- 產品型號： T-Core
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： MAX 10 10M50DAF484C7G Device
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The T-Core presents a robust hardware design platform built around the Intel MAX 10 FPGA. It is well equipped to provide cost effective, single-chip solutions in control plane or data path applications and industry-leading programmable logic for ultimate design flexibility. With MAX 10 FPGA, you can get lower power consumption / cost and higher performance than previous generation. When you need high-volume applications, including protocol bridging, motor control drive, analog to digital conversion, and handheld devices, the T-Core is your best choice.
The T-Core development board includes hardware such as on-board USB-Blaster II, QSPI Flash, ADC header, WS2812B RGB LED and 2x6 TMD expansion header. By leveraging all of these capabilities, the T-Core is the perfect solution for showcasing, evaluating, and prototyping the true potential of the Intel MAX 10 FPGA.
T-Core also supports RISC-V CPU with on-board JTAG debug. It is an ideal platform for learning RISC-V CPU design or embedded system design.
FPGA Device
- MAX 10 10M50DAF484C7G Device
- Integrated dual ADCs, each ADC supports 1 dedicated analog input and 8 dual function pins
- 50K programmable logic elements
- 1,638 Kbit M9K Memory
- 5,888 Kbits user flash memory
- 144 18 × 18 Multiplier
- 4 PLLs
User Interface
- Button x2
- Dip Switch x4
- Green LED x4
- RGB LED x4
JTAG
- On-board USB-Blaster II for programming MAX10
- On-board USB-Blaster II for programming RISC-V
- JTAG Master for programming the FPGA on other Boards.
Clock and Memory Devices
- Two 50 MHz single-ended, external oscillator clock source
- One 10 MHz single-ended, external oscillator clock source
- 64Mb QSPI Flash (Store RISC-V Code)
Expansion Connector
- 2x6 TMD Expansion Header
- 1x10 ADC Header
- Two 1x3 RGB LED Expansion header
Power Supply
- USB Type mini-AB port (5V)
- 2-pin external power header (4.4-5.6V)

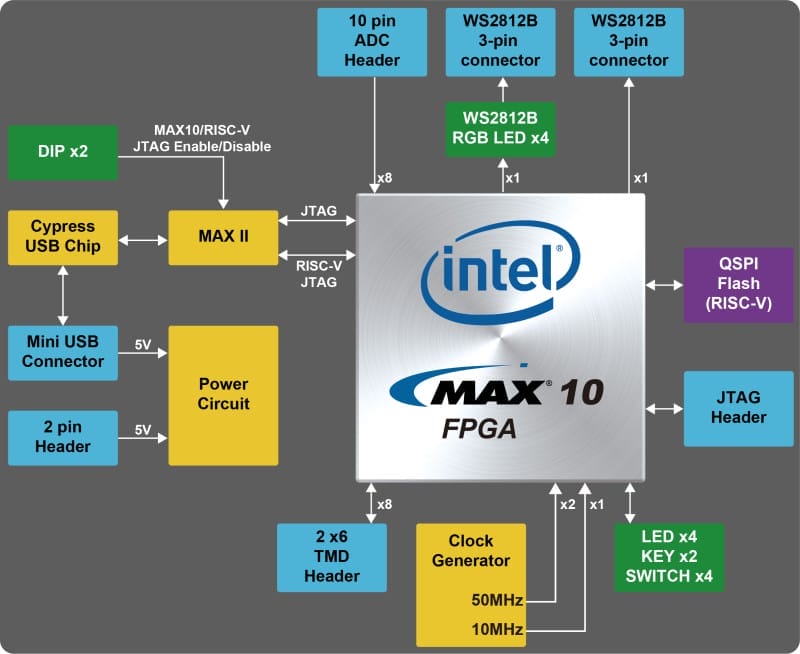

Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[T-Core] T-Core Kit
產品編號: P0633
 重量: 500g |
xxx |
| 2. |
[T-Core] T-Core Kit (教育版)
產品編號: P0633
重量: 500g |
xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| T-Core User Manual | 1.1 | 6262 | 2020-01-20 |
 |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| T-Core CD-ROM | 1.1.0 | 2020-01-20 |
T-Core RISC-V BSP
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| T-Core RISC-V board support package | 1.0.1 | 2020-02-21 |
