【DK-DEV-5CGTD9N】Cyclone V GT FPGA Development Kit
- 產品型號： DK-DEV-5CGTD9N/C5GT
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： The Cyclone V GT FPGA Development Kit features a 5CGT–D9-C7N production silicon device.
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The Altera® Cyclone® V GT FPGA Development Kit can be used to prototype Cyclone V GT FPGA or Cyclone V GX FPGA applications. It offers a quick and simple way to develop low-cost and low-power FPGA system-level designs and achieve rapid results. This kit supports a myriad of functionalities such as:
•FPGA prototyping
•FPGA power measurement
•Transceiver I/O performance up to 5.0 Gbps
•PCI Express® (PCIe®) Gen2 x4 (at 5.0 Gbps per lane)
•Endpoint or rootport support
FPGA Device
Configuration and Debug
Quad Serial Configuration device – EPCQ256 on FPGA
On-Board USB Blaster (Normal Type-B USB connector)
JTAG and AS mode configuration supported
Memory Device
Communication
Embedded USB-Blaster II (JTAG)
Fast Passive Parallel (PFL)
Altera EPCQ—EPCQ256SI16N (Quad Serial Configuration Device)
Standard communication ports
PCIe x4 edge connector
Gigabit Ethernet (GbE)
One SMA clock output
Two universal high-speed mezzanine card (HSMC) connectors, each with four high-speed serial transciever channels
One serial digital interface (SDI) channel —1 SMB for RX and 1 SMB for TX
Channel shared with HSMA via resistor stuffing option
Push buttons, DIP switches, and LEDs
Clocking
Programmable clock generator for FPGA reference clock input
125 MHz LVDS oscillator for FPGA reference clock input
148.5/148.35 MHz LVDS VCXO for FPGA reference clock input
50 MHz single-ended oscillator for FPGA and MAX V CPLD clock input
100 MHz single-ended oscillator for MAX V CPLD configuration clock input
SMA input (LVPECL)
Power
Laptop DC Input 14 – 20 V adapter
PCIe edge connector
System monitoring circuit
Power (Voltage, Current, Wattage)
Mechanical
PCIe card standard size (4.376" x 6.600")

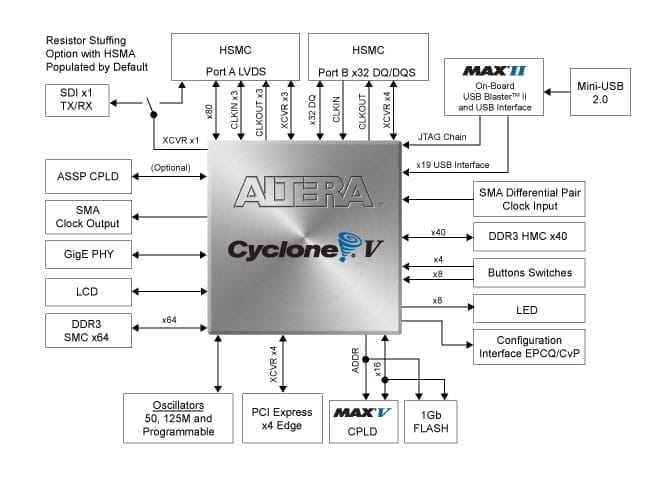

Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[C5GT] Altera Cyclone V GT FPGA Development Kit
產品編號: T0156  重量: 3,400g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Cyclone V GT FPGA Development Kit User Guide (PDF) | 2013-01-08 |  | ||
| Cyclone V GT FPGA Development Board Reference Manual (PDF) | 2013-01-08 | |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |  |
