【DK-DEV-5CEA7N】Intel Cyclone V E FPGA 開發套件
- 產品型號： DK-DEV-5CEA7N/C5EFP
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Cyclone V E FPGA Development Kit開發套件具備一臺 5CEFA7F31I7N 速度等級芯片器件。
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810

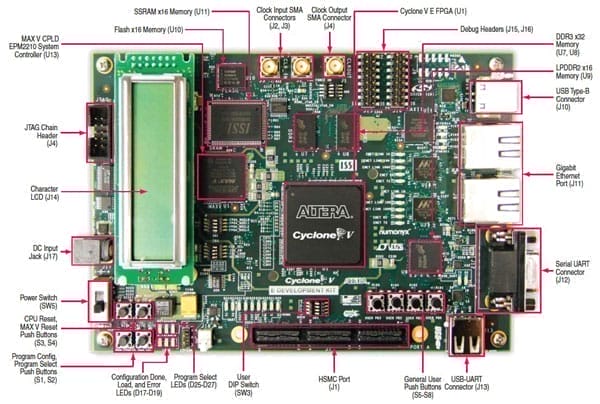

The Cyclone® V E Development Kit offers a comprehensive general purpose development platform for many markets and applications, including: Industrial Networking, Military, and Medical applications. The kit features an the Altera®Cyclone V device and a multitude of on board resources including: multiple banks of DDR3 and LPDDR2 memory, LCD character display, LEDs, user switches, USB and RJ-45 connectors. The Cyclone V E Development Kit gives industrial equipment designers greater flexibility in implementing real-time Ethernet communications with Industrial Ethernet intellectual property (IP) cores.
Featured devices:
Cyclone V E FPGA - 5CEFA7F31C7NES
MAX V CPLD - 5M2210ZF256I5N (system controller)
MAX II CPLD - EPM240M100I5N (embedded USB Blaster II)
Configuration:
On-board USB-BlasterTM II cable (USB, PHY, Max® V CPLD)
JTAG direct via JTAG header
Memory devices
DDR3 x32 at 300 MHz (soft memory controller)
LPDDR2 x16 (soft memory controller)
Flash (512 Mb)
SSRAM (18 Mb)
EEPROM (64 Kb)
General user input/output
User control
Four pushbuttons
Five LEDs
Four DIP switches
2x Resets (CPU reset, Dev Clear)
LCD: Character LCD (16x2)
Components and interfaces
RJ45 for Ethernet
UART interface
Quartus® II design software information
Quartus II Web Edition Software

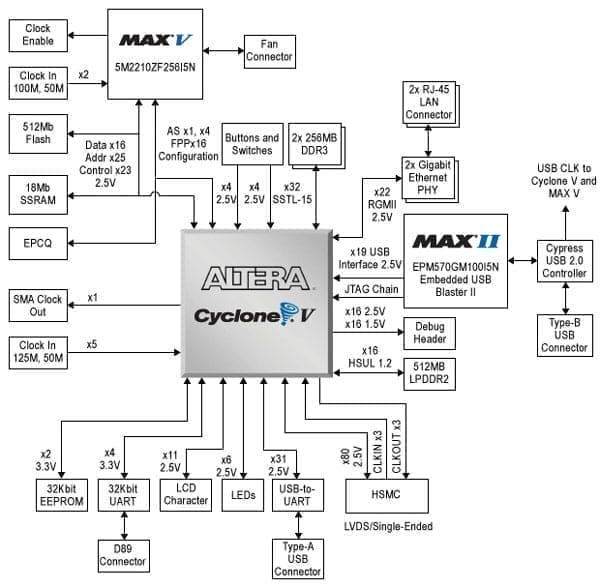

Altera Cyclone V E FPGA Development Board Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[C5EFP] Altera Cyclone V E FPGA Development Kit
產品編號: T0134  重量: 3,500g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Cyclone V E FPGA Development Kit User Guide (PDF) | 2015-03-19 |  | ||
| Cyclone V E FPGA Development Board Reference Manual (PDF) | 2015-03-19 |  |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |  |
