【DK-DEV-4CGX150N】Altera Cyclone IV GX FPGA Development Kit
- 產品型號： DK-DEV-4CGX150N/C4GFP
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Cyclone IV GX EP4CGX150N FPGA in a F896 package
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
Altera® Cyclone® IV GX FPGA Development Kit provides a comprehensive, best-in-class design environment to quickly begin developing low-cost and low-power FPGA system-level designs. This kit helps to shorten your product’s development cycle so that you can meet your product’s time to market and production milestones. With this platform, you can:
Develop and test PCI Express® Gen1 x1, x2, x4 endpoint designs using the Cyclone IV GX PCI Express hard intellectual property (IP) and PCI-SIG® -compliant board
Develop and test multi-lane protocol bridging designs using on-board DDR2 memory and through its expansion capability, the high-speed mezzanine card (HSMC) connectors. There are over 30 different HSMCs available through Altera partners and supporting protocols such as CPRI, SATA, and SDI.
Come up to speed quickly with your FPGA design by reusing the example designs provided by the kit's Board Test System.
Use the kit´s host board as design model for your product’s low-cost and low-power board.
Featured device
Cyclone IV GX EP4CGX150N FPGA in a F896 package
Configuration status and set-up elements
Passive serial (PS) configuration via a MAX® II EPM2210 CPLD and flash memory
On-board USB-BlasterTM download cable using Quartus® II Programmer
Clocks
On-board clock oscillators: 50 MHz, 100 MHz (programmable), and 125 MHz
SMA connectors for external clock input
SMA connectors for clock output
General user input and output
LEDs
LCD display
Push button and dual in-line package (DIP) switches
Memory devices
128-megabytes (MB) DDR2 SDRAMs with a 32-bit data bus
64-MB sync flash and 4-MB SSRAM
Component and interfaces
PCI Express edge connector
10/100/1000-Mbps Ethernet PHY with RJ-45 connector
Two HSMC connectors
Power measurement circuitry
Power
Laptop DC input
PCI Express edge connector power
Other features
PCI Express short card form factor
RoHS-compliant

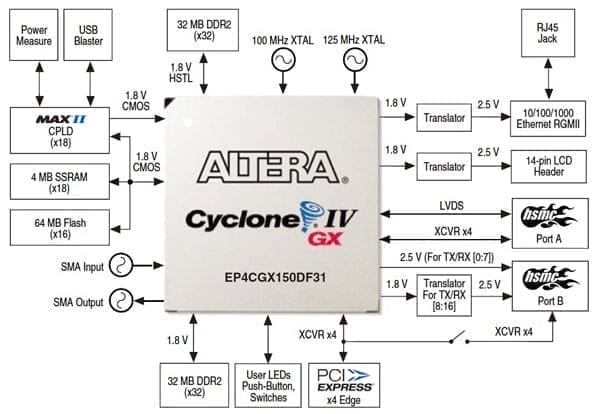

Altera Cyclone IV GX FPGA Development Board Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[C4GFP] Altera Cyclone IV GX FPGA Development Kit
產品編號: T0073  重量: 3,500g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Cyclone IV GX FPGA Development Kit User Guide (PDF) | 2015-03-19 |  | ||
| Cyclone IV GX FPGA Development Board Reference Manual (PDF) | 2015-03-19 | |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Kit installation | 2015-03-19 |  |
