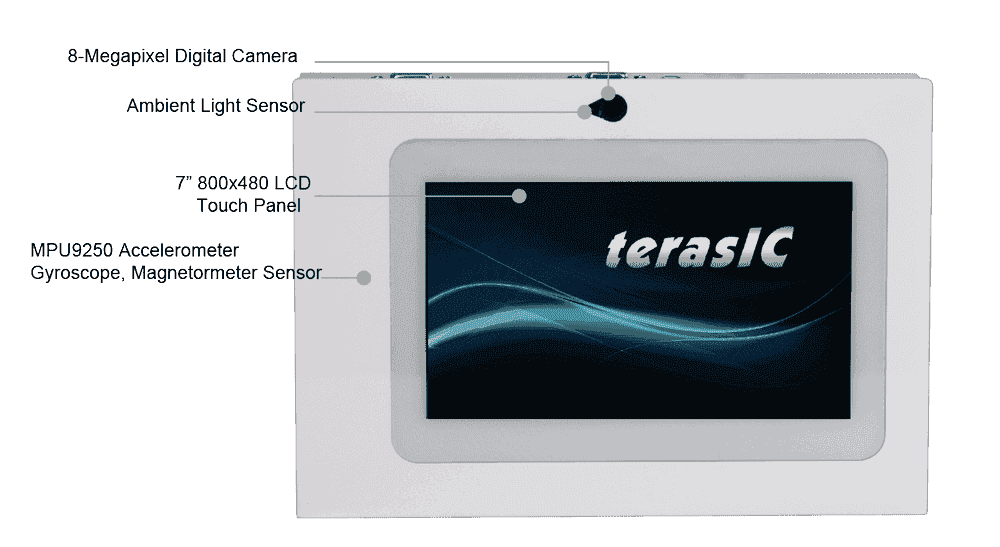

The Video and Embedded Evaluation Kit-Multi-touch, Second Edition, on Cyclone^® V SoC Development Board (VEEK-MT2-C5SoC) is a comprehensive embedded design environment with everything developers need to create processing-based systems. VEEK-MT2-C5SoC delivers an integrated platform that includes hardware, design tools, intellectual property (IP) and reference designs to develope embedded solutions for a wide range of applications. The fully integrated kit allows developers to rapidly customize their processor and IP to best suit their specific application. The VEEK-MT2-C5SoC features the Intel Cyclone^® V SoC development board with Intel Cyclone^® V SX SoC FPGA, and a capacitive 7” TFT LCD with 800x480 resolution which supports 5-point touch and multi-touch gestures. An 8-megapixel digital image sensor with auto focus, ambient light sensor, Gyroscope, Magnetometer, and 3-axis accelerometer makes up the rich feature-set.

The all-in-one embedded solution offered on the VEEK-MT2-C5SoC, in combination with the LCD touch panel and digital image module, provides embedded developers the ideal platform for multimedia applications with unparallel processing performance. Developers can benefit from the use of this FPGA-based embedded processing system utilizing mitigating design risk and obsolescence, design reuse, reducing bill of material (BOM) costs by integrating powerful graphics engines within the FPGA, and by lower costs.

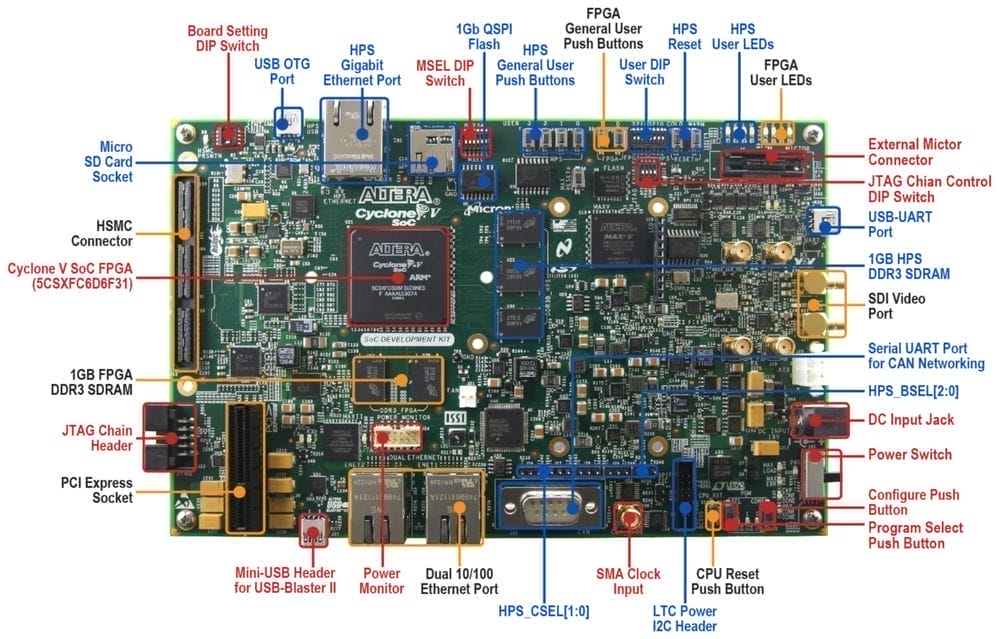

Cyclone V SX SoC Development Board

SoC Embedded Design Suite Subscription Edition

• ARM Development Studio 5 (DS-5™) Intel Edition Toolkit

• Hardware-to-software handoff tools

• Linux run-time software for application development

• SoC hardware libraries for firmware development

• Application example

Cyclone V SX SoC—5CSXFC6D6F31C6N (SoC)

• 110K LEs, 41509 ALMs

• 5140 M10K memory blocks

• 224 18x18 Multipliers

• 6 FPGA PLLs and 3 HPS PLLs

Configuration Device and USB Blaster Circuit

• Active Serial (AS) x1 or x4 configuration (EPCQ256SI16N)

• MAX^® V CPLD (5M2210ZF256I5N) in a 256-pin FBGA package as the System Controller

• Flash Fast Passive Parallel (FPP) configuration

• MAX II CPLD (EPM570GM100) as part of the embedded USB-Blaster^TM II for use with the Quartus^® II Programmer

Memory Devices

• One 1,024-Mbyte (MB) HPS DDR3 SDRAM with Error Correction Code (ECC) support

• One 1,024-MB FPGA DDR3 SDRAM

• One 256-Megabit (Mb) quad serial peripheral interface (QSPI) Flash

• One 512-Mb CFI Flash

• One 32-Kb I2C serial Electrically Erasable PROM (EEPROM)

• One microSD flash memory card

Switches and Indicators

• LEDs and displays

  • Eight user LEDs

  • One configuration load LED

  • One configuration done LED

  • One error LED

  • Three configuration select LEDs

  • Four on-board USB-Blaster II status LEDs

  • One HSMC interface LED

  • Two UART data transmit and receive LEDs

  • One power on LED

  • One two-line character LCD display

• Push buttons

  • One CPU reset push button

  • One MAX V reset push button

  • One program select push button

  • One program configuration push button

  • Six general user push buttons

• DIP switches

  • One MAX V CPLD System Controller control switch

  • One JTAG chain control DIP switch

  • One mode select DIP switch

  • One general user DIP switch

On-board Clocking Circuitry

• Si570, Si571, and Si5338 programmable oscillators

• 25-MHz, 50-MHz,100-MHz, 125-MHz, 148.50-MHz, and 156.25-MHz oscillators

• SMA input (LVCMOS)

Communication Ports

• One PCI Express x4 Gen1 socket

• One universal HSMC port

• One USB 2.0 on-the-go (OTG) port

• One Gigabit Ethernet port

• Dual 10/100 Ethernet ports

• One SDI port (option for SMA connection)

• One controller area network (CAN) port

• One RS-232 UART (through the mini-USB port)

• One real-time clock

Power

• 14-20 V (laptop) DC input

Mechanical

• 5.2" × 8.2" rectangular form factor

Capacitive LCD Multi-touch Screen

• 7-inch TFT LCD with pixel resolution of 800*480
• 16 million colors (24-bit RGB)
• LED backlight
• 5-point capacitive touch

8-Megapixel Digital Image Sensor

• 3,264H x 2,448V active pixels with Bayer color arrangement
• Programmable frame rate up to 60FPS (1408X792)
• Sensitivity 940mV/Lux-sec
• Voice Coil Motor for focus control

Ambient Light Sensor

• Precise illumination measurement under diverse lighting conditions
• Programmable interrupts
• 16-bit digital output with I2C fast-mode at 400 kHz
• Programmable analog gain and integration time
• 50/60Hz lighting ripple rejection

MPU9250 Nine-Axis Sensors

Accelerometer Features

• Digital-output triple-axis accelerometer
• Programmable full scale range of ±2g, ±4g, ±8g and ±16g and integrated 16-bit
• Self-test

Gyroscope Features

• Digital-output X-, Y-, and Z-Axis angular rate sensors
• User-programmable full-scale range of ±250, ±500, ±1000, and ±2000°/sec and integrated 16-bit ADCs
• Self-test

Magnetometer

• 3-axis silicon monolithic hall-effect magnetic sensor with magnetic concentrator
• Wide dynamic measurement range and high resolution with lower current consumption
• Output data resolution of 14 bit (0.6μT/LSB) or 16 bit (15μT/LSB)
• Full scale measurement range is ±4800μT
• Magnetometer normal operating current: 280μA at 8Hz repetition rate
• Self-test function with internal magnetic source to confirm magnetic sensor operation on end products



• Size：223*160*47 mm
