【DE5a-Net-DDR4】TERASIC友晶 DE5a-Net Board
- 產品型號： DE5a-Net-DDR4（Part No:P0497）
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Altera Arria 10 GX FPGA (10AX115N2F45E1SG)
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The Terasic DE5a-Net Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 3/4-length form-factor package, the DE5a-Net is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.
The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the DE5a-Net to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the DE5a-Net delivers with two independent banks of DDR4 SO-DIMM RAM, four independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the DE5a-Net fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

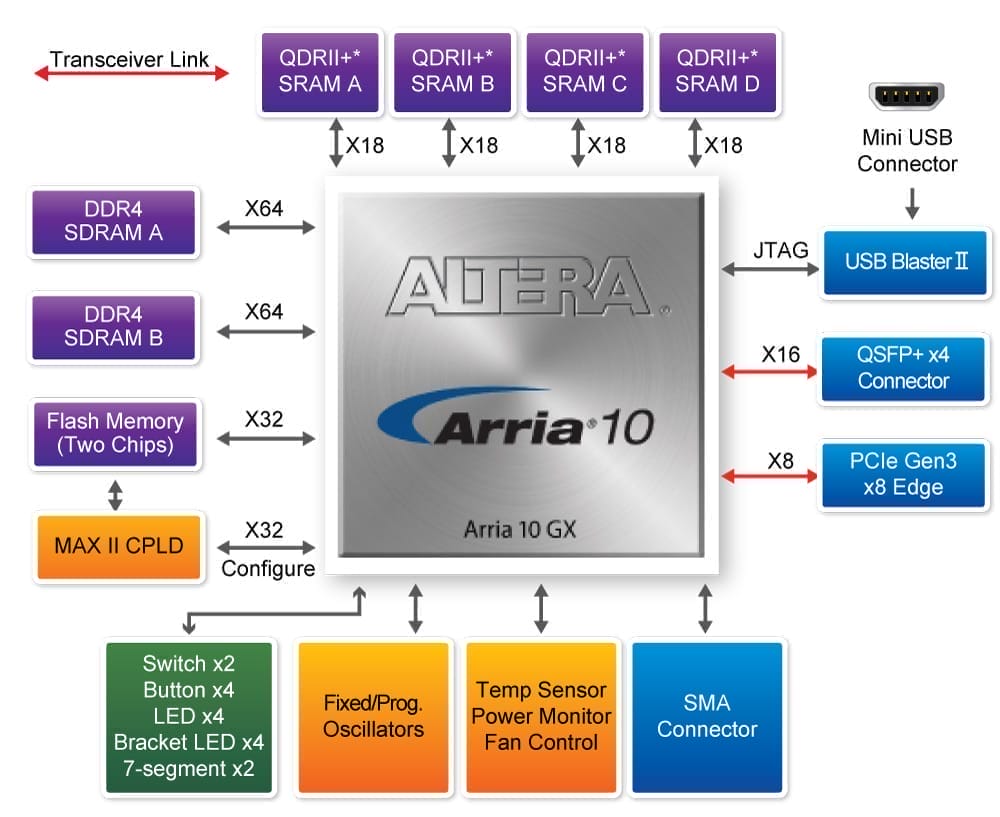

FPGA
Altera Arria 10 GX FPGA (10AX115N2F45E1SG)
FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
Memory
256MB FLASH
2 Independent DDR4 SODIMM Sockets, up to 16GB 1066MHz or 8GB 1200MHz for each socket
4 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each
Communication and Expansion
Four QSFP+ connectors
PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
One RS422 expansion header
Others
General user input / output:
2 LEDs
1 Bracket LED Array
2 7-segments
4 push-buttons
2 slide switches
SMA clock input / output
On-Board Clock
50MHz Oscillator
Programmable Clock Generator
System Monitor and Control
Temperature sensor
Power Monitor
Fan control
Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power
Mechanical Specification
PCI Express standard height and 3/4-length
主產品訂購
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[DE5a-Net-DDR4] DE5a-Net Board
產品編號: P0489  重量: 3,500g | xxx |
選購配件 (如需選購, 請與主產品同時訂購)
| No | 配件名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[SW-OPENCL] SW-OPENCL-SDK/DKE, license
產品編號: P0166 重量: 100g | xxx |
| 2. |
8GB (x64, SR) 260-Pin DDR4 SODIMM
產品編號: MMM-3055-MCN 重量: 200g | xxx |
| 3. |
DDR4 16GB (x64, DR) 260-Pin SODIMM
產品編號: MMM-3064-DSL 重量: 200g | xxx |
| 4. |
[TUB] Timing and UART Board
產品編號: P0504 重量: 500g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| DE5a-Net DDR4 Edition User Manual | 1.0.1 | 8913 | 2017-10-02 |  |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| DE5a-Net DDR4 Edition CD-ROM | 1.0.1 | 2017-10-02 |
DE5a-Net DDR4 Edition BSP for Intel OpenCL 16.1
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| DE5a-Net OpenCL BSP for Windows | 1.0.0 | 2017-07-11 | ||
| DE5a-Net OpenCL BSP for Linux | 1.0.0 | 2017-07-11 | ||
| DE5a-Net OpenCL User Manual | 1.0.0 | 2004 | 2017-07-11 | |
