【DK-START-5AGXB3N】Altera Arria V GX Starter Kit

  • 產品型號： DK-START-5AGXB3N/A5SK（Part No:T0111）
  • 產品品牌： TERASIC友晶科技/Intel FPGA
  • 產品規格： Arria V GX 5AGXFB3H4F35C5NES
  • 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
  • 咨詢熱線：18062095810

The Altera® Arria® V GX Starter Kit provides a complete design environment that includes all the hardware and software you need to develop cost-sensitive FPGA applications immediately. The development kit is RoHS compliant. The development kit features the following:

  • Arria V GX FPGA—360KLE, F1152 package, 24X6.5G XCVRs, C4 speed grade

  • One I/O expansion slot—one high-speed mezzanine card (HSMC) connector

  • 256 MB of SDRAM memory

  • High-definition multimedia interface (HDMI) and serial digital interface (SDI) connections

  • SMAs

FPGA:

  • Arria V GX  5AGXFB3H4F35C4N

System controller: MAX® V 5M2210ZF256C4N

  • Power monitor GUI

  • Single analog-to-digital converter (ADC), eight channels

  • Non-isolated power rail

  • Fast passive parallel (FPP) x16 mode through parallel flash loader (PFL)

  • Control and status registers

Embedded USB-BlasterTM II:

  • MAX II EPM570GM100C4N

HDMI 1.3 TX

  • x4 XCVR, 2.7 Gbps (max by level shifter) and 270 MHz TX clock HDMI TX connector

  • STMicroelectronics HDMI level shifter STHDLS101T

  • Level shift XCVR PCML 1.5V <-> TMDS level

  • DDC and HPD <-> HDMI compliant level

  • Data channel up to 2.7 Gbps; HDMI 1.3 compliant

  • Clock channel up to 270 MHz; enough to support 2.7 Gbps data rate

  • HDMI specification: clock period = 10x of UI

SDI 3G

  • x1 XCVR TX/RX loopback

  • x2 SMB connectors and cable (cable not included in kit)

  • Up to 2.97 Gbps

  • Uses National Semiconductor driver/receiver LMH0384SQ/LMH0303SQx

  • Requires 148.5 MHz and 148.35 MHz at XCVR refclk to support US and EU standard respectively

  • Use VCXO to fine tune and lock to the recovered CDR frequency

HSMC

  • x8 XCVR up to 6.375 Gbps

  • Not complied to PCI Express&reg; (PCIe&reg; ) HIP pin assignment

  • x4 CMOS

  • x8 TX and x9 RX differential interface using dedicated TX/RX channels

  • x2 low-voltage differential signalling (LVDS) clock in

  • x2 differential clock out

  • I2C

  • JTAG

  • Minimum current support

  • 2A @ 3.3V

  • 1A @ 12V

  • Dedicated clock domain from Si 5338 clock generator for xcvr refclk

  • HSMC loopback with BTS GUI

SMA

  • 1x XCVR TX/RX channel

  • 1x LVPECL clock input

  • 1X LVPECL clock output

Clocking

  • Dedicated clock domain from Si 5338 clock generator for xcvr refclk

DDR3 SDRAM x32

  • Micron MT41J64M16LA-15E DDR3 SDRAM 8MX16X8

  • Two devices: 2 x16 width = x32

  • BTS DDR3 SDRAM GUI using Uniphy and high performance (HP) controller II

SSRAM

  • 512k x36, 18 Mb ISSI IS61VPS51236A

  • Shared address or data with flash

User IO

  • LCD character

  • x4 DIP switch

  • x3 PB

  • x4 LED

Configuration

  • FPP x16 mode

  • Dual flash 512Mbit Numonyx PC28F512P30BF (52 MHz FMAX )

  • JTAG header

Embedded USB Blaster II

  • Cypress Microcontroller CY7C68013A as USB PHY 2.0

  • MAX II

Ethernet

  • 10/100/1000 Base-T

  • RJ-45 connector, on-board LED for link status

  • Marvell Ethernet PHY 88E1111

  • Requires 50 MHz clock from CLKIN

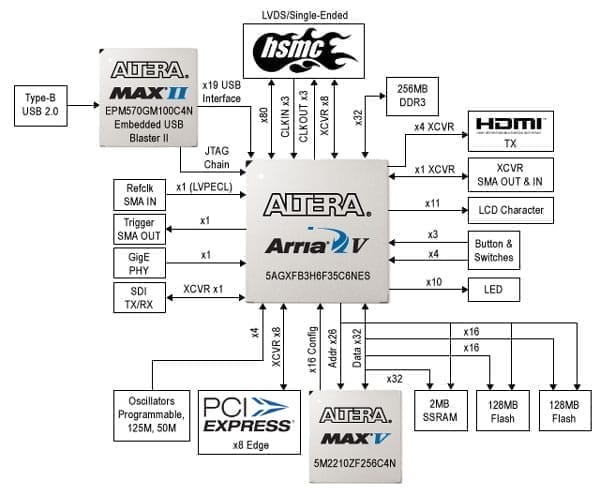

Altera Arria V GX Starter Board Block Diagram

Altera Arria V GX Starter Board Block Diagram

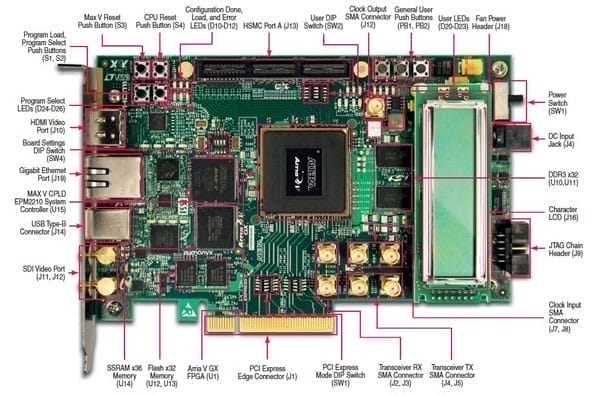

Layout

No 產品名稱 售價(RMB)
1. [A5SK] Altera Arria V GX Starter Kit
產品編號: T0111  重量: 3,500g
xxx


Documents

標題 版本 檔案大小(KB) 新增日期 下載
Arria V GX Starter Board Reference Manual (PDF)     2015-03-19
Arria V GX Starter Kit User Guide (PDF)     2015-03-19

CD-ROM

標題 版本 檔案大小(KB) 新增日期 下載
Kit installation     2015-03-19
