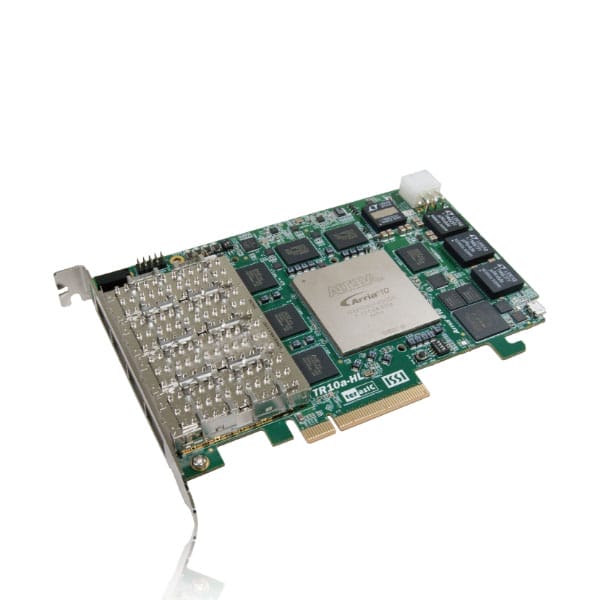

【TR10a-HL】TR10a-HL Arria 10 FPGA Development Kit
- 產品型號： TR10a-HL（Part No:P0497）
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Altera Arria 10 GX FPGA (10AX115N2F45E1SG)
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The Terasic TR10a-HL Arria 10 GX FPGA Development Kit provides the ideal hardware solution for designs that demand high capacity and bandwidth memory interfacing, ultra-low latency communication, and power efficiency. With a full-height, 1/2-length form-factor package, the TR10a-HL is designed for the most demanding high-end applications, empowered with the top-of-the-line Altera Arria 10 GX, delivering the best system-level integration and flexibility in the industry.
The Arria® 10 GX FPGA features integrated transceivers that transfer at a maximum of 12.5 Gbps, allowing the TR10a-HL to be fully compliant with version 3.0 of the PCI Express standard, as well as allowing an ultra low-latency, straight connections to four external 40G QSFP+ modules. Not relying on an external PHY will accelerate mainstream development of network applications enabling customers to deploy designs for a broad range of high-speed connectivity applications. For designs that demand high capacity and high speed for memory and storage, the TR10a-HL delivers with six independent banks of QDRII+ SRAM, high-speed parallel flash memory. The feature-set of the TR10a-HL fully supports all high-intensity applications such as low-latency trading, cloud computing, high-performance computing, data acquisition, network processing, and signal processing.

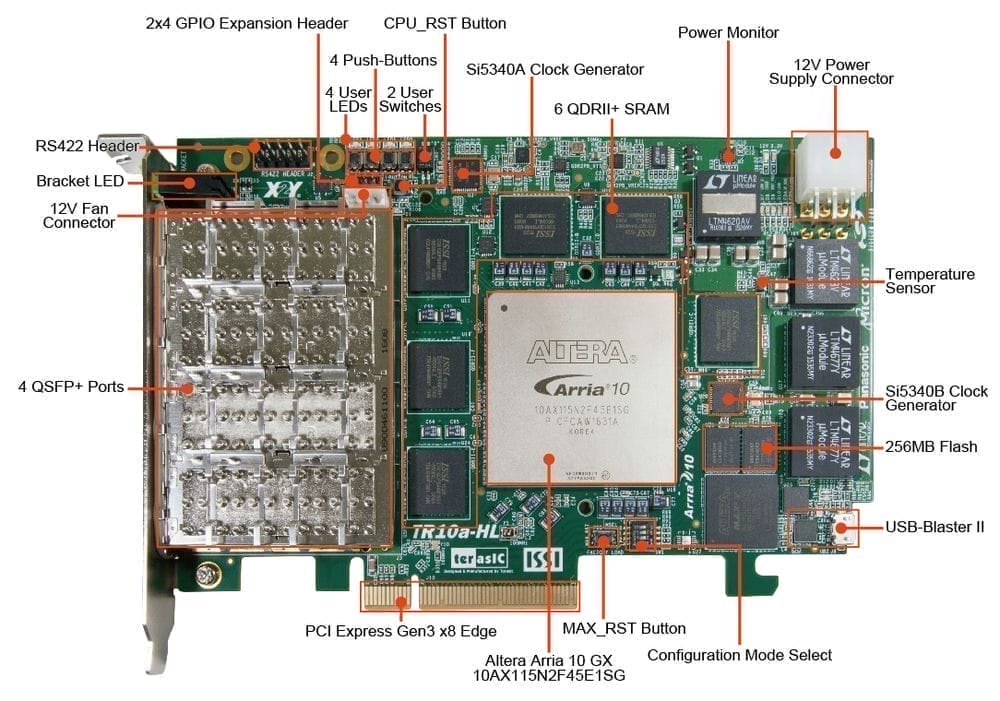

FPGA
Altera Arria 10 GX FPGA (10AX115N2F45E1SG)
FPGA Configuration
On-Board USB Blaster II or JTAG header for FPGA programming
Fast passive parallel (FPPx32) configuration via MAX II CPLD and flash memory
Memory
256MB FLASH
6 Independent 550 MHz QDRII+SRAMs, 18-bits data bus and 72Mbit for each ( * )
Communication and Expansion
Four QSFP+ connectors
PCI Express (PCIe) x8 edge connector (includes Windows PCIe drivers)
One 2x5 RS422 expansion header
One 2x4 GPIO expansion header
Others
General user input / output:
4 LEDs
1 Bracket LED Array
4 push-buttons
2 DIP switches
On-Board Clock
50MHz Oscillator
Programmable Clock Generator
System Monitor and Control
Temperature sensor
Power Monitor
Fan control
Power
PCI Express 6-pin power connector, 12V DC Input
PCI Express edge connector power
Mechanical Specification
PCI Express standard height and 1/2-length

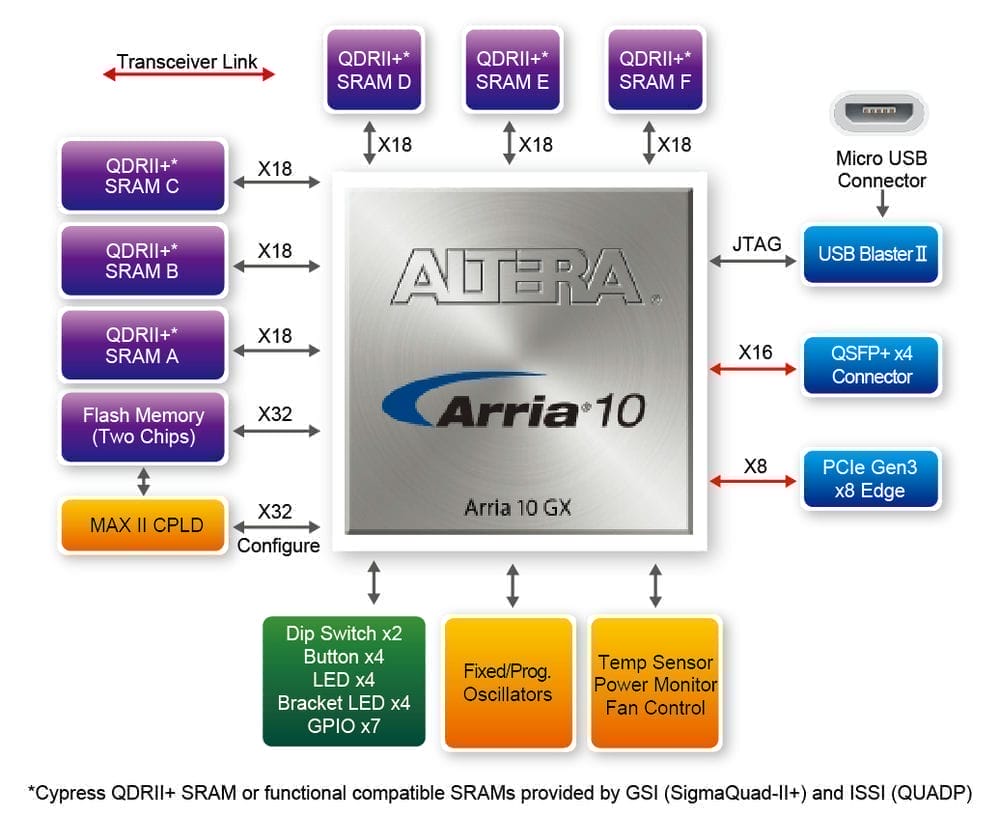

Block Diagram
Size：106.65x167.64mm
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[TR10a-HL] TR10a-HL Arria 10 FPGA Development Kit
產品編號: P0497  重量: 3,500g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| TR10a-HL User Manual | 8286 | 2016-11-15 |  |
CD-ROM
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| TR10a-HL CD-ROM | 1.0.0 | 2016-11-15 |
