Arria? 10 GX Transceiver Signal Integrity Development Kit
- 產品型號： DK-SI-10AX115S-A/A10GSI-E4（Part No:T0444）
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： 10AX115S2F45I1SG
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
The Intel® Transceiver Signal Integrity Development Kit, Arria® 10 GX Edition helps you thoroughly evaluate the signal integrity of Arria 10 GX transceivers. This development kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Intel Arria 10 GX FPGAs.
With this kit, you can:
Evaluate transceiver performance from 1 Gbps up to 17.4 Gbps (GX)
Generate and check pseudo-random binary sequence (PRBS) patterns via an easy-to-use GUI
Dynamically change differential output voltage (VOD), pre-emphasis, and equalization settings to optimize transceiver performance for your channel
Perform jitter analysis
Verify physical medium attachment (PMA) compliance to PCI Express* (PCIe*), Gbps Ethernet (GbE), XAUI, CEI-6G, Serial RapidIO*, high-definition serial digital interface (HD-SDI), and other major standards

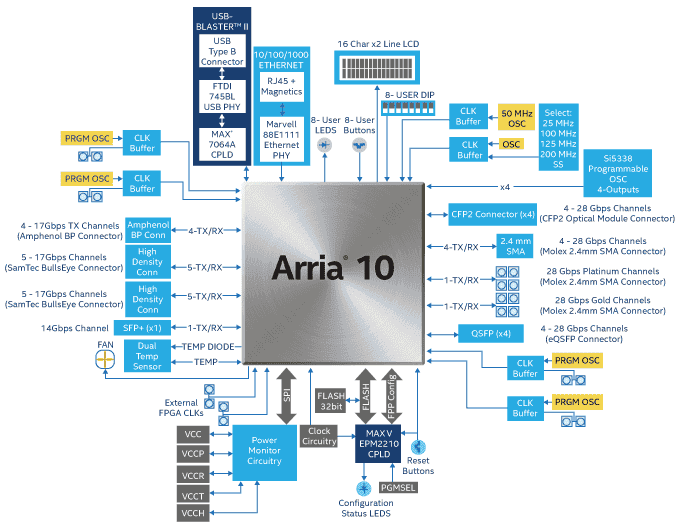

Figure 2. Arria 10 GX Transceiver Signal Integrity Development Kit Block Diagram
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[A10GSI-E4] Arria 10 GX Transceiver Signal Integrity Development Kit
產品編號: T0444  重量: 7,400g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Arria 10 GX Transceiver Signal Integrity Installation Package (Production Edition) |
Production Edition  | 2017-05-11 |  | |
| User Guide (Production Edition) |
Production Edition | 2017-05-11 |  | |
| Quick Start Guide (Production Edition) |
Production Edition | 2017-05-11 | | |
| Qsys and Quartus Prime Tools |
1 | 2017-05-11 |  |
