【DK-DEV-10AX115S-A】Altera Arria 10 GX FPGA Development
- 產品型號： DK-DEV-10AX115S-A/A10GFP（Part No:T0426）
- 產品品牌： TERASIC友晶科技/Intel FPGA
- 產品規格： Arria 10 GX 10AX115S2F45I1SG
- 產品價格： 歡迎咨詢采購，量多優惠多，提供完善的售后保障和支持！
- 咨詢熱線：18062095810
Altera’s Arria® 10 GX FPGA Development Kit delivers a complete design environment that includes all hardware and software you need to start taking advantage of the performance and capabilities available in Arria 10 GX FPGAs for your design needs.

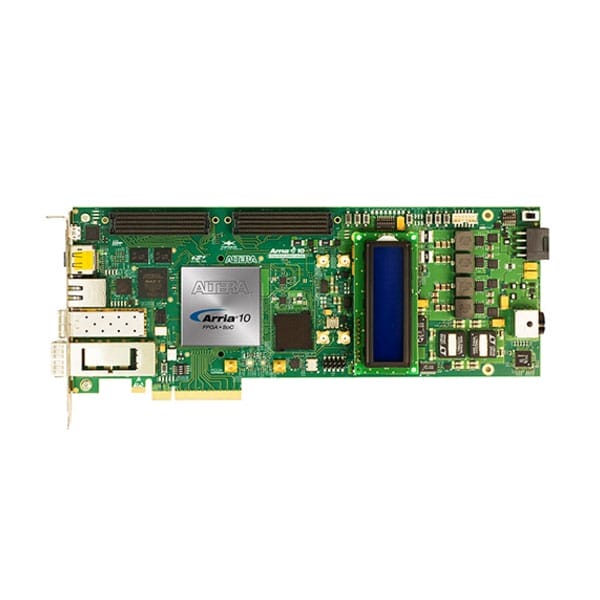

Figure 1. Arria 10 GX FPGA Development Kit
You can use this development kit to:
Develop and test PCI Express® (PCIe®) 3.0 designs using the PCI-SIG®-compliant development board.
Develop and test memory subsystems consisting of DDR4, DDR3, QDR IV, and RLDRAM III memories.
Develop modular and scalable designs by using the FPGA mezzanine card (FMC) connectors to interface to a FMC mezzanine card provided by Altera partners and supporting protocols, such as JESD204B, Hybrid Memory Cube, Bandwidth Engine 2, Serial RapidIO®, 10 Gbps Ethernet (10GbE), SONET, Common Public Radio Interface (CPRI),OBSAI, and many others.

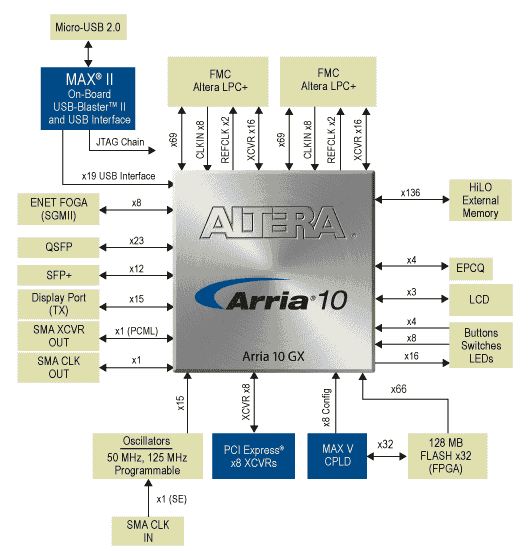

Figure 2. Arria 10 GX FPGA Development Kit Block Diagram
Arria 10 GX FPGA development board running on Arria 10 GX 10AX115S2F45I1SG2 FPGA
1 GB DDR4 SDRAM, 2GB DDR3 SDRAM, and RLDRAM3 (16 Meg x 36) daughtercards
Two FMC loopback cards supporting transceiver, LVDS and single-ended I/Os
One quad small-form-factor pluggable (QSFP) and one SFP+ port
Two FMC low-pin count (LPC + 15 transceivers) connector
PCIe x8 edge connector
Serial digital interface (SDI) channel
Character LCD
AC adapter power cables
Ethernet and USB cables
Software1
Design examples
Board Update Portal design
Board Test System (BTS) design
Documentation
Arria 10 GX FPGA Development Kit User Guide
Board design files
Design software3
Quartus Prime software (required)
Nios® II processor (optional)
MegaCore® intellectual property (IP) library (optional)
Mentor Graphics® ModelSim®-Altera software (optional)
Notes:
Download and install Arria 10 GX FPGA Development Kit installer first.
A one-year license for Quartus® Prime design software ships with the development kit.
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[A10GFP] Altera Arria 10 GX FPGA Development Kit
產品編號: T0426  重量: 4,300g | xxx |
| No | 產品名稱 | 售價(RMB) |
|---|---|---|
| 1. |
[A10GFP] Altera Arria 10 GX FPGA Development Kit
產品編號: T0426 重量: 4,300g | xxx |
Documents
| 標題 | 版本 | 檔案大小(KB) | 新增日期 | 下載 |
|---|---|---|---|---|
| Arria 10 GX FPGA Package Installer (ES Edition) |
1.0  | 2015-11-30 | ||
| User Guide (ES Edition) |
1.0 | 2015-11-30 | ||
| Quick Start Guide |
1.0 | 2015-11-30 | ||
| Board Schematic (ES Edition) |
1.0 | 2015-11-30 | ||
| Golden Systems Top |
1.0 | 2015-11-30 |
